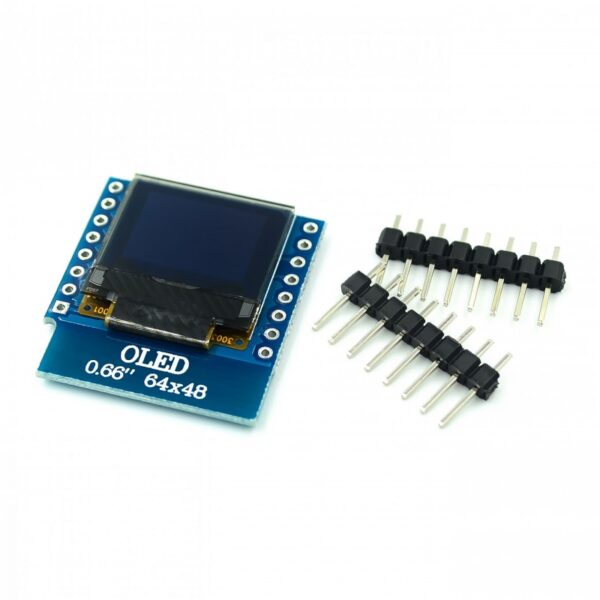

D1 mini 0.66 OLED Display Key Features:
- High-Resolution Display: Boasts a 64×48 pixel LCD screen, ensuring sharp visuals for your projects.
- Versatile Compatibility: Designed to work seamlessly with the Wemos D1 Mini ESP32 Module, Arduino, AVR, and STM32.
- Efficient Communication: Utilizes the IIC (I2C) interface, ensuring smooth and rapid data transfer.
- Optimal Operating Voltage: Functions efficiently at a voltage of 3.3V.
- Reliable Driver IC: Employs the SSD1306 driver IC for consistent performance.
- Flexible IIC Addressing: This can be set to either 0x3C or 0x3D, offering adaptability to your project’s needs.
Design & Connectivity of D1 mini 0.66 OLED Display:
- Seamless Integration: Connects effortlessly to the Wemos D1 Mini via pins D1 and D2, which also serve as the I2C serial data.

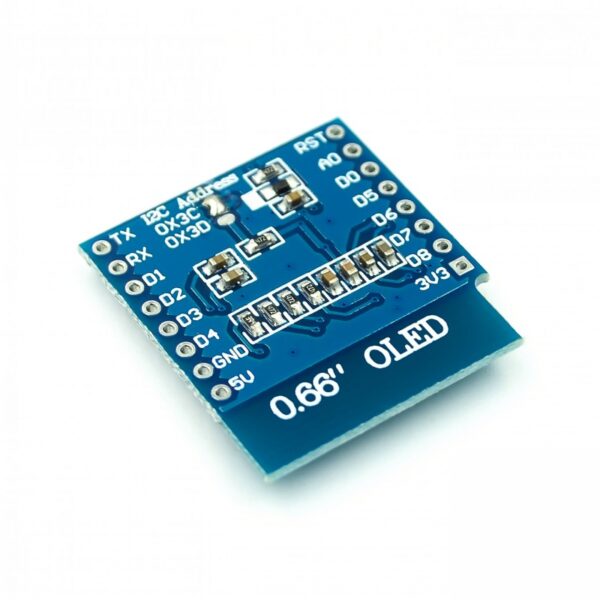

- Address Selection: Comes with a jumper, SJ1, allowing you to choose the I2C address. By default, it’s set to 0x3C for hassle-free operation.
D1 mini 0.66 OLED Display Setup & Usage:
- Library Installation: To get started, simply install the Adafruit_SSD1306_Library and the LOLIN I2C Button library in Arduino.
- High Visibility: Renowned for its clarity in all lighting conditions, ensuring your projects are always visible.
- Energy Efficient: Consumes significantly less power compared to traditional backlit LCDs, making it eco-friendly.
Specifications of D1 OLED Display:
- Screen Size: 64 x 48 pixel
- Operating Voltage: 3.3V
- Driver IC: SSD1306
- Interface: IIC(I2C)
- IIC Address: 0x3C or 0x3D

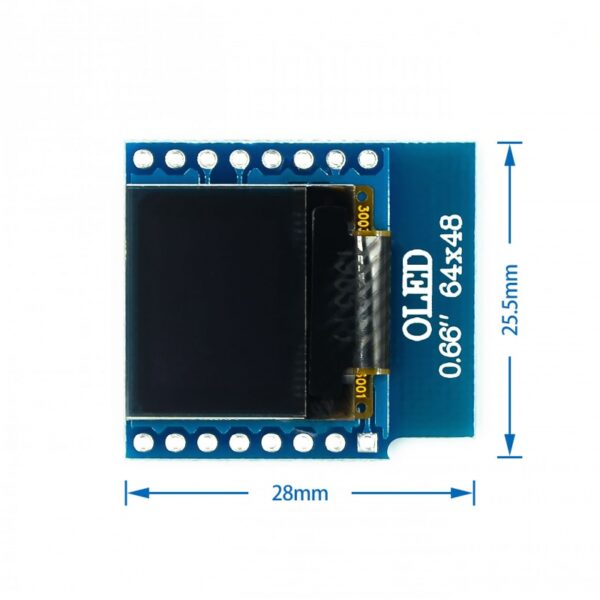

- Dimensions: 25 x 28 mm
Endless Possibilities: Whether you’re designing a user interface for your innovative product or crafting an open-source DIY smartwatch operating system, the Wemos D1 Mini OLED Shield is your go-to display module. Experience unmatched clarity and versatility with Kunkune’s Wemos D1 Mini 0.66 OLED Display Module. Elevate your projects today!
