9999 Counts True RMS with One-Handed Operation
Fast and Free Delivery from UK / 60 days return / 1 year warranty

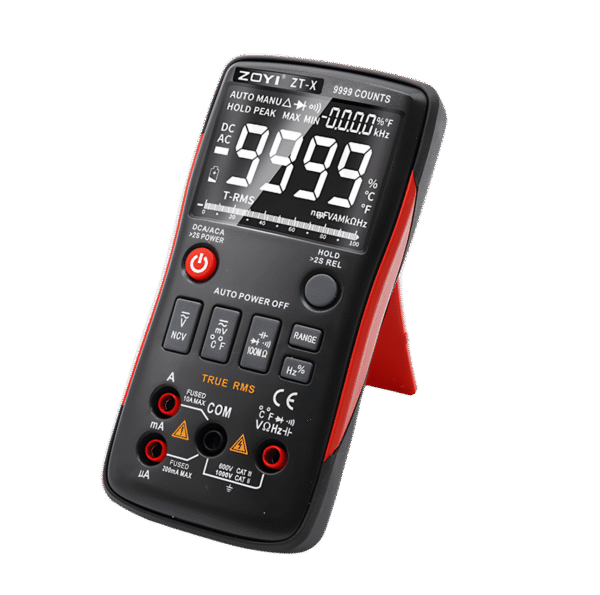

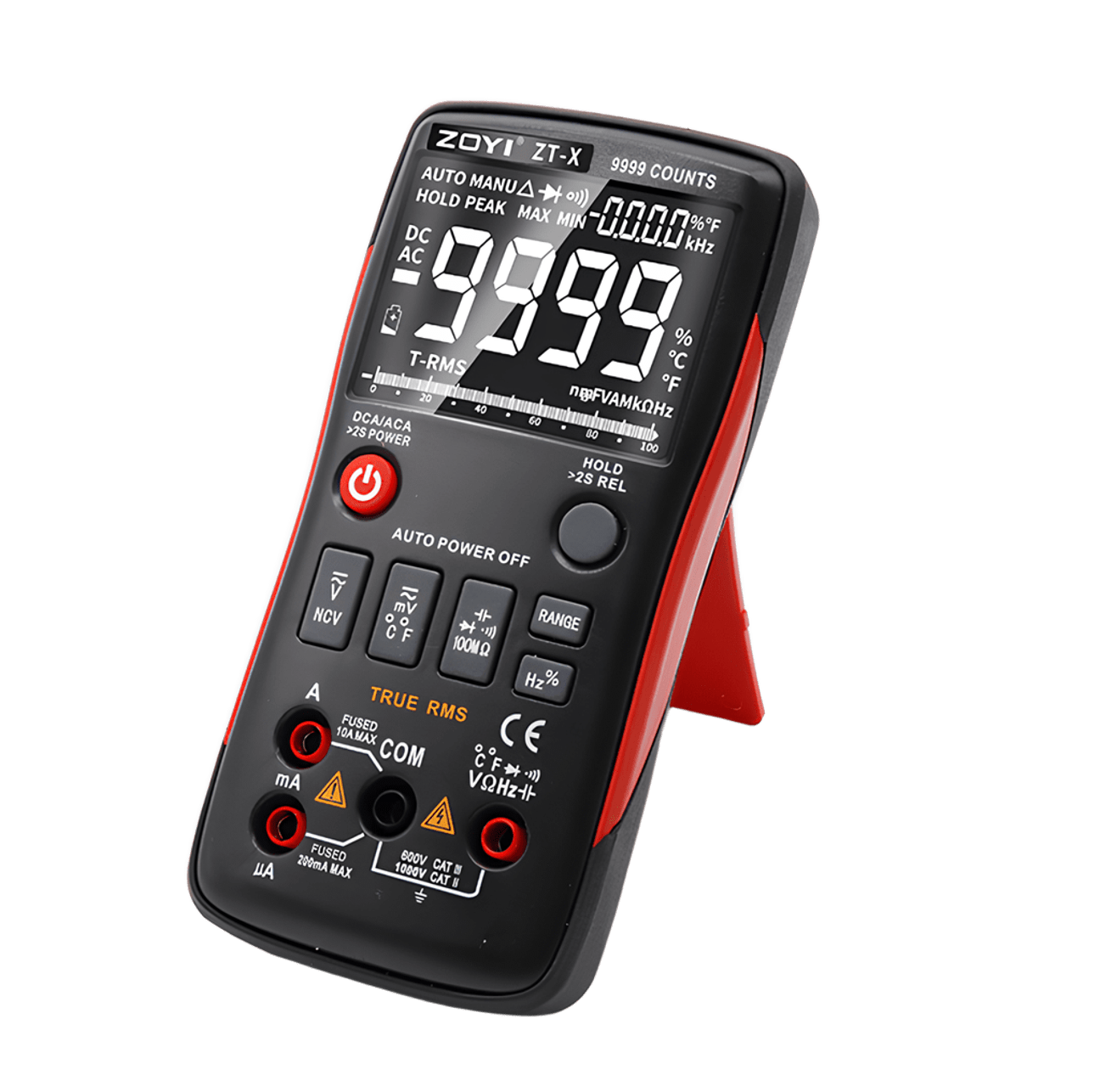

🎯 What Is ZOYI ZT-X?
The ZOYI ZT-X revolutionizes multimeter design with its innovative all-button interface – no rotary selector needed! This breakthrough design enables true one-handed operation while delivering professional 9999-count True RMS measurements. Perfect for electricians, technicians, and anyone who needs accurate measurements in challenging work conditions.

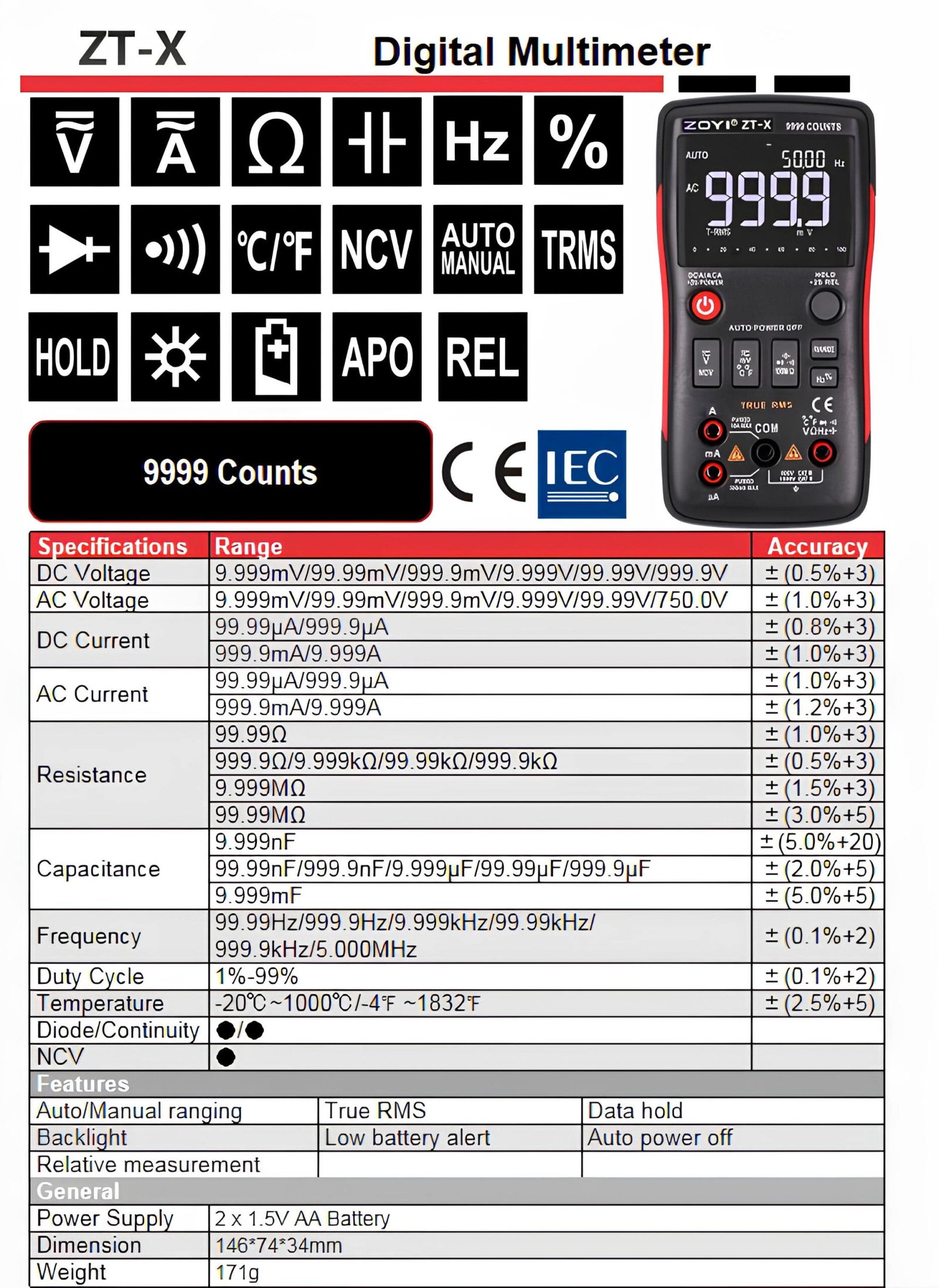

⚡ Key Specifications
Display: 9999 counts • High-contrast LCD with backlight • 360° viewing angle
Accuracy: True RMS • ±0.5% basic accuracy • CAT II 600V safety rated
Ranges: DC 1000V, AC 750V • DC/AC 10A • 100MΩ resistance • 9.999mF capacitance
Special Features: Button-only design • One-handed operation • NCV detection • Temperature measurement
🔄 Revolutionary Button Design
Why Button Design Matters: • No rotary dial – eliminates the most common failure point in multimeters • One-handed operation – perfect for tight spaces and awkward positions
• 100,000 keystroke durability – tested for professional longevity • No overshoot – precise mode selection every time • Accessibility friendly – easier for users with limited dexterity

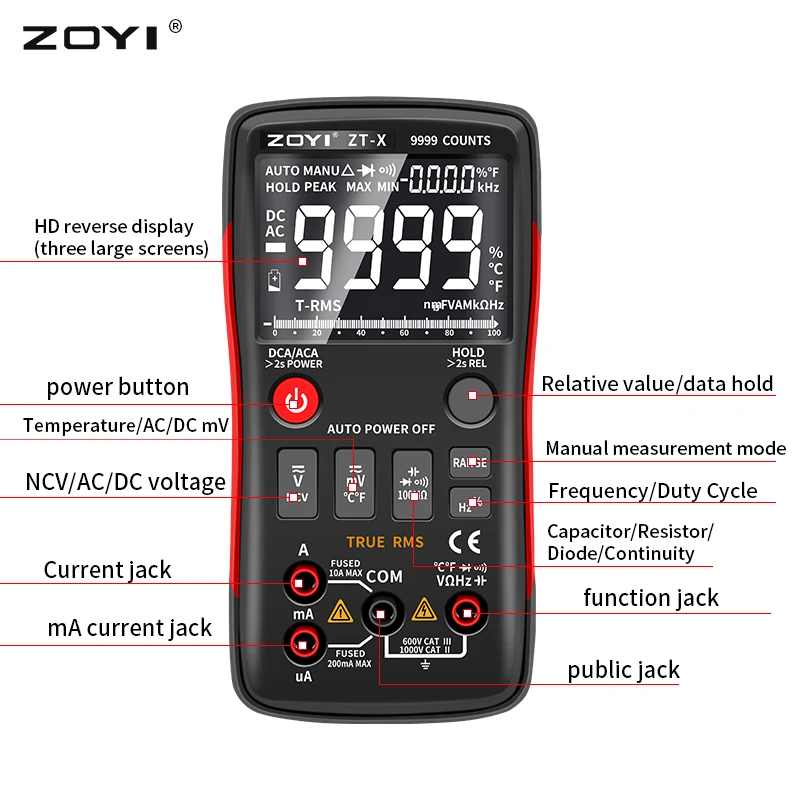

Smart Button Layout: • AC/DC/NCV Button – voltage measurement and non-contact detection • mV/Temp Button – millivolt precision and temperature measurement
• Ω/Diode/Cap Button – resistance, continuity, diode, and capacitance testing • Range Button – manual range control when needed • Hz/Duty Button – frequency and duty cycle measurement • Hold/Rel Button – data hold and relative measurement modes
📏 Measurement Capabilities of the ZT-X Multimeter
Voltage Measurement

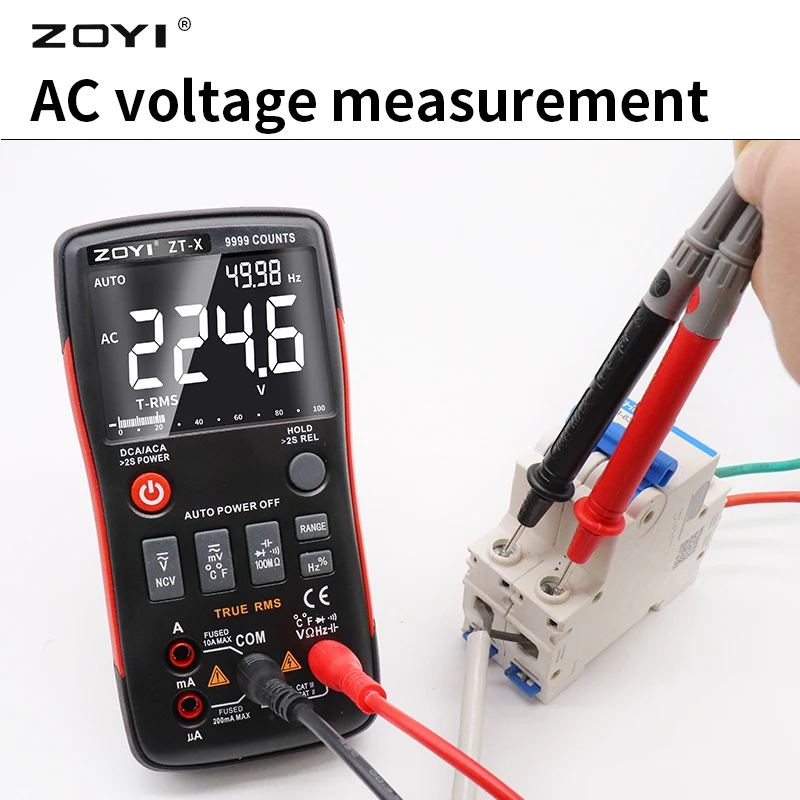

• DC Voltage: 9.999mV to 1000V (±0.5% accuracy) • AC Voltage: 9.999mV to 750V (±1.0% accuracy) • Millivolt precision – measure small signals accurately • True RMS – accurate readings on distorted waveforms • UK mains safe – 750V AC rating covers all UK applications
Current Measurement
• DC Current: 99.99µA to 10A (±0.8-1.0% accuracy) • AC Current: 99.99µA to 10A (±1.0-1.2% accuracy) • Microamp precision – ideal for low-power circuit analysis • Auto current switching – automatically detects when current leads inserted • Overload protection – fused inputs for safety
Resistance & Continuity
• Range: 99.99Ω to 100MΩ (±0.5-3.0% accuracy) • Continuity testing – audible beeper for quick checks • Low resistance accuracy – ideal for contact and trace resistance • High resistance capability – insulation testing up to 100MΩ
Advanced Functions
• Capacitance: 9.999nF to 9.999mF (±2.0-5.0% accuracy) • Frequency: 99.99Hz to 5MHz (±0.1% accuracy) • Duty Cycle: 1-99% (±0.1% accuracy) • Temperature: -20°C to 1000°C with included probe • Diode Testing: Forward voltage measurement with polarity indication
Safety & Detection
- System voltage and current verification
- Temperature measurement at multiple points
- Capacitor testing for motor circuits
- Frequency testing for variable speed drives

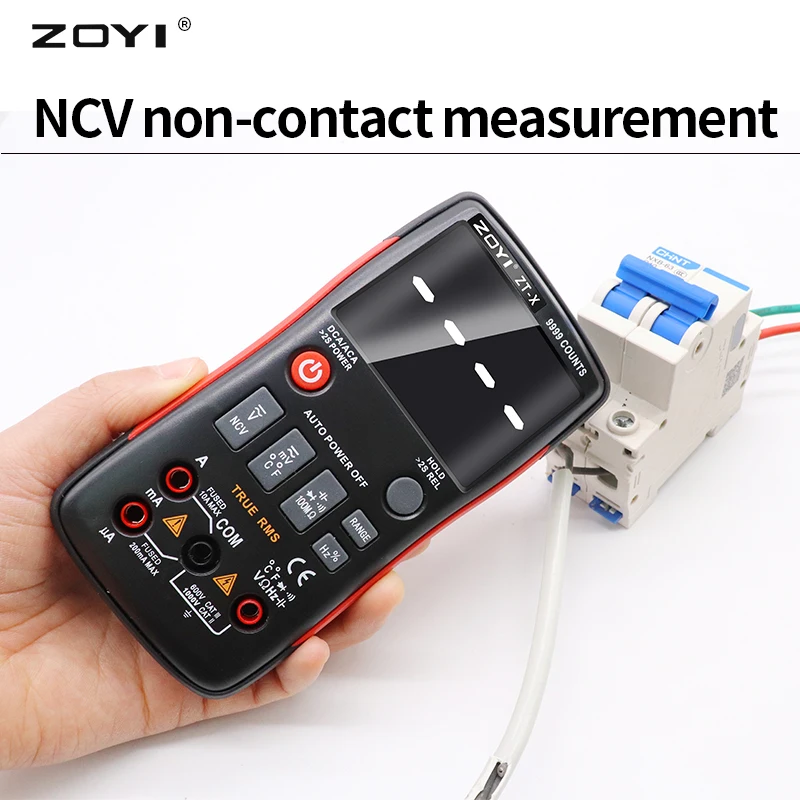

• Non-Contact Voltage (NCV) – detect live wires without contact • CAT II 600V rating – safe for UK domestic and light commercial work • Input protection – overload protection on all ranges • Low battery indicator – never get caught with dead batteries
👥 Perfect for Every Professional
🔧 Electricians & Maintenance
“One-handed operation in tight panel work”
- Electrical panel troubleshooting
- Motor and control circuit testing
- Mains voltage verification (750V AC rated)
- Wire tracing with NCV detection
🏠 HVAC Technicians
“Temperature probe included for system diagnostics”
🚗 Automotive Technicians
“Perfect for cramped engine bay work”
- Battery and charging system testing
- Sensor voltage and resistance checking
- Duty cycle measurement for PWM signals
- Temperature monitoring for diagnostic work
📱 Electronics Repair
“Precision measurement for delicate work”
- PCB voltage and signal tracing
- Component testing and verification
- Low-power current consumption measurement
- Capacitor and diode testing
🎓 Students & Educators
“Simple button operation eliminates confusion”
- Basic electrical measurement training
- Circuit analysis and verification
- Component identification and testing
- Safe introduction to electrical measurement
🏠 DIY Enthusiasts
“Professional results without complexity”
- Home electrical troubleshooting
- Appliance repair and maintenance
- Car maintenance and repair
- Electronics project development
💡 Advantages Over Traditional Multimeters
| Feature | Traditional Rotary Multimeters | ZOYI ZT-X Button Design | Real-World Benefit |
|---|---|---|---|
| Operation Method | Rotary dial selection | Button-only interface | No mechanical wear, precise selection |
| One-Handed Use | Requires two hands | True one-handed operation | Work in tight spaces, hold components |
| Mode Selection | Turn dial, easy to overshoot | Press button, exact selection | Faster, more accurate mode changes |
| Durability | Rotary switch wears out | 100,000 keystroke tested buttons | Longer professional lifespan |
| Accessibility | Requires fine motor control | Easy button pressing | Better for all users |
| Speed | Dial turning takes time | Instant button selection | Faster workflow |
| Precision | Can slip between positions | Definitive button feedback | No accidental mode changes |
| Display | Often small, poor contrast | High-contrast 9999 count LCD | Clear readings in any lighting |
| Current Detection | Manual lead placement | Auto-detects current leads | Prevents measurement errors |
| Safety | Easy to select wrong mode | Clear button labeling | Reduces measurement mistakes |
🛠️ Real-World Problem Solving
Electrical Panel Work
The Problem: Traditional multimeters require two hands – one for probes, one for dial
ZT-X Solution: Hold probes with one hand, operate all functions with thumb
- Test multiple circuits quickly
- Maintain contact while changing ranges
- Work safely in crowded panels
Automotive Diagnostics
The Problem: Engine bay access is cramped, difficult to operate rotary controls
ZT-X Solution: Button operation works even when meter isn’t visible
- Test sensors without removing hands from probes
- Check duty cycles on PWM signals
- Measure temperatures at various system points
Component Testing
The Problem: Small components are hard to hold while operating meter controls
ZT-X Solution: Complete one-handed operation leaves other hand free
- Hold components steady during testing
- Quick mode switching for comprehensive analysis
- Efficient component sorting and verification
Field Service Work
The Problem: Working conditions aren’t always ideal for delicate dial operation
ZT-X Solution: Positive button feedback works with gloves or in poor lighting
- Reliable operation in challenging environments
- Clear display visible from any angle
- Rugged button design withstands field conditions
🔋 Professional Design Features
Ergonomic Excellence
• 171g weight – lightweight for extended use • 146×74×34mm size – fits comfortably in hand • Rubberized grip – secure handling in any conditions • Balanced design – natural feel during one-handed use • Integrated stand – hands-free bench operation
Display Innovation
• High-contrast LCD – clear readings in bright or dim conditions • 360° viewing angle – readable from any position • Large digits – easy reading at arm’s length • Backlight – illuminated display for dark work areas • Dual temperature display – Celsius and Fahrenheit simultaneously
Power Management
• 2×AA batteries – commonly available, long life • Auto power-off – 5-minute timeout conserves battery • Low battery warning – 5 beeps before shutdown • Power-off disable – hold Range while powering on to disable auto-off
📦 Complete Package
What’s Included: ✅ ZT-X multimeter with integrated stand
✅ Professional test leads with safety tips
✅ Temperature probe (K-type thermocouple)
✅ 2×AA batteries (ready to use)
✅ Comprehensive English manual
✅ Protective carrying case
Professional Ready: • CAT II 600V safety certification • CE marking for UK/EU compliance • Fused input protection • Anti-burn circuitry
🇬🇧 UK Professional Benefits
Perfect for UK Applications: • 750V AC rating – handles UK 415V three-phase systems safely • True RMS – accurate readings on UK switch-mode power supplies • Temperature probe – ideal for UK climate and heating system work • Compact size – perfect for UK residential electrical work
🚀 Order Today
📦 UK Delivery Options: • Free standard delivery (1-2 working days) • Express next-day delivery available • Secure payment: all major cards, PayPal, BNPL options
🔥 Why Wait? Experience the future of multimeter design with revolutionary button operation that changes how you work.
🛒 Order your ZT-X now and discover why thousands of professionals are switching to button-operated multimeters!
✅ Revolutionary Design ✅ True RMS ✅ One-Handed Operation ✅ 9999 Counts ✅ Free UK Delivery
Work smarter, not harder – order today!
