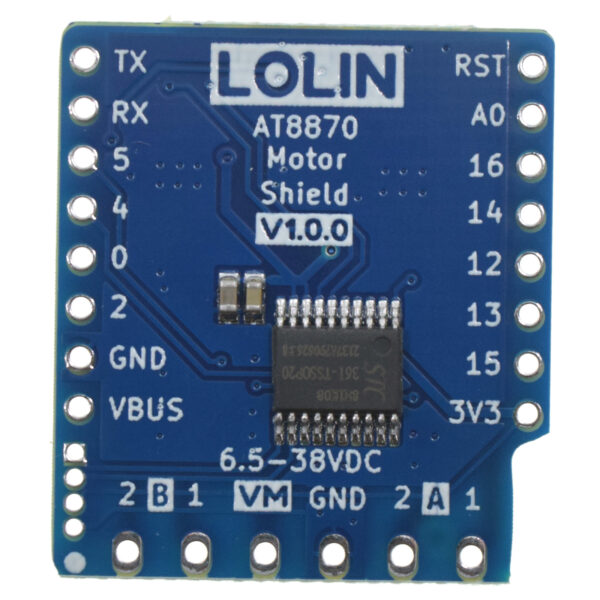

AT8870 Motor Shield v1.0.0 for Wemos D1 mini I2C Dual Motor
Features:
I2C interface with LOLIN I2C Port.
Power supply voltage: VM=6.5-38VDC
Output current: Iout=2A(average) / 3.6A (peak)
CW/CCW/short brake/stop motor control modes
Pins Description
VM: Motor power supply + (6.5-38VDC)
GND: Motor power supply –
1-A-2: Motor A
2-B-1: Motor B
More info
https://www.wemos.cc/en/latest/d1_mini_shield/at8870_motor.html
Arduino library
https://github.com/wemos/LOLIN_I2C_MOTOR_Library
In the package:
2x 8P pins
1x 6P 3.5mm pins
1x Motor Shield
