Ever been stuck with a car that won’t start, lights that flicker, or strange electrical problems that drive you nuts? If you’re nodding your head right now, you need to learn about multimeters! These handy tools are like a doctor’s stethoscope for your car’s electrical system. In this guide to multimeter basics for automotive diagnostics, I’ll show you how this simple device can help you solve many car problems without expensive trips to the mechanic. Ready to become an automotive electrical detective? Let’s get started!
Understanding Automotive Multimeters
What Is a Multimeter?
A multimeter is a tool that measures different electrical values. Think of it as three tools in one:
- It measures voltage (how strong the electricity is)
- It measures resistance (how much the electricity is blocked)
- It measures current (how much electricity is flowing)
For car problems, these three measurements tell you almost everything you need to know about what’s happening in your vehicle’s electrical system.
Digital vs. Analog: Which Should You Choose?
There are two main types of multimeters: digital and analog. Here’s the simple breakdown:
Digital multimeters (DMMs) show numbers on a screen. They’re:
- Easier to read
- More precise
- Better for beginners
- Perfect for automotive work
Analog multimeters use a moving needle. They’re:
- Better for tracking changing values
- Often cheaper
- More difficult to rehttps://kunkune.co.uk/blog/electronics/our-best-multimeter-uk-top-picks-for-accuracy-safety-and-value/ad accurately
- Less common nowadays
For working on your car, a basic digital multimeter is your best choice. It gives clear readings and many come with features that make automotive testing easier.
What Features Do You Need?
Not all multimeters are created equal! Here’s what to look for in a good automotive multimeter:
- Auto-ranging capability (automatically selects the right measurement range)
- DC voltage measurement up to at least 20V
- Resistance measurement
- Continuity test with audible beep feature
- Current measurement capability
- Backlit display for working in dark areas
- Durable case that can handle garage conditions
You can get a decent automotive multimeter for $20-50. While professional models like Fluke can cost hundreds, an affordable model works fine for most DIY car jobs.

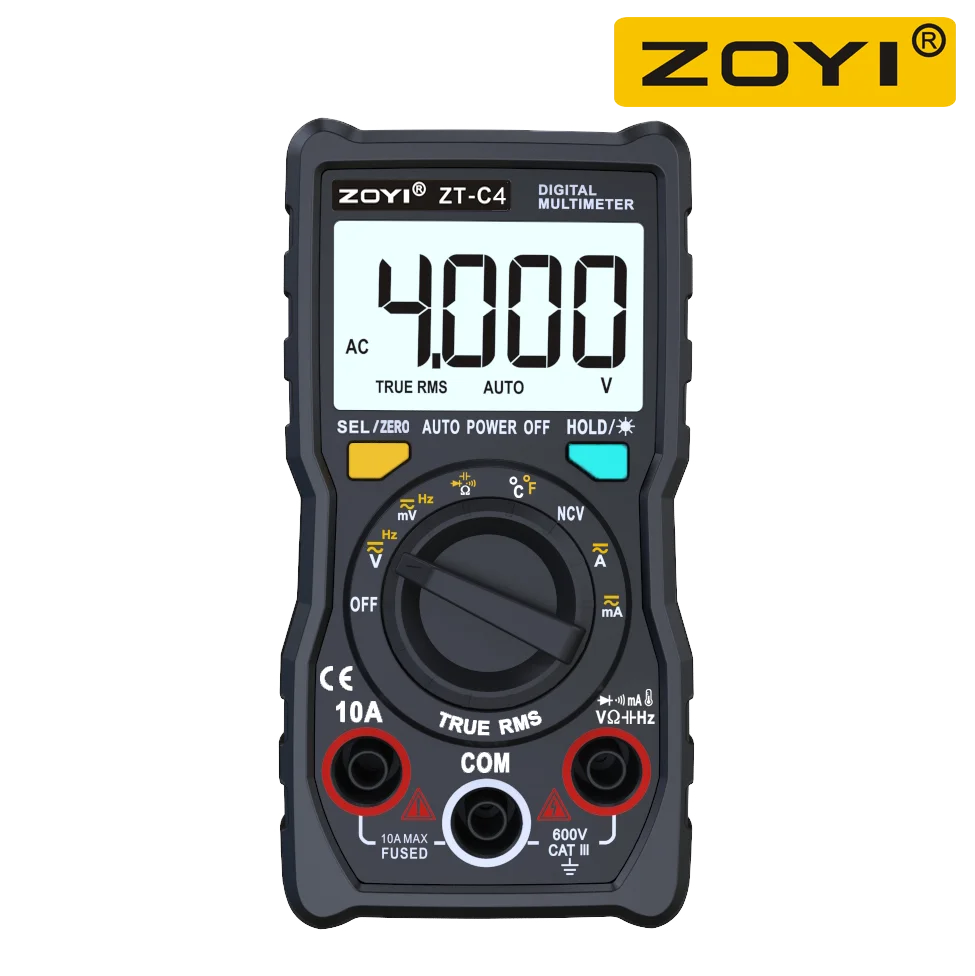

Basic Parts of a Multimeter
Before you start using your multimeter, get familiar with its basic parts:
- Display screen: Shows your readings
- Selection dial: Chooses what you’re measuring (voltage, resistance, etc.)
- Input jacks: Where you plug in the test leads
- Test leads: The wires with probes that connect to what you’re testing
- Black lead = negative/ground
- Red lead = positive
Most multimeter problems come from having the leads in the wrong jacks or using the wrong dial setting. Take time to learn your specific model!
Setting Up Your Multimeter for Automotive Testing
Connecting Test Leads Correctly
The first step in using your multimeter is connecting the leads properly:
- The black lead always plugs into the jack labeled “COM” (common or ground)
- For most automotive tests, the red lead goes into the jack labeled “VΩ” (voltage/ohms)
- Only move the red lead to the “A” (amperage) jack when measuring current
Safety tip: Always double-check your connections before testing. Putting leads in the wrong jacks can damage your meter or give you false readings.
Understanding Multimeter Symbols
Those strange symbols on your multimeter dial might look like hieroglyphics, but they’re actually simple:
- V with a straight line (V⎓): DC voltage (what cars use)
- V with a wavy line (V~): AC voltage (not used much in automotive)
- Ω (omega symbol): Resistance
- A with a straight line (A⎓): DC current
- Diode symbol (►|): Tests diodes and continuity
For basic automotive work, you’ll mostly use DC voltage and resistance settings.
Selecting the Right Range
If your multimeter isn’t auto-ranging, you’ll need to set the range yourself:
- For battery testing, set to 20V DC (automotive systems are 12-14V)
- For resistance testing in wiring, use the lowest ohm setting
- For resistance testing in components, check the specifications
- For current testing, start with the highest setting (10A) unless you know the circuit draws less
When in doubt, start with a higher range and work down. This protects your meter from damage.
Safety First!
Working with car electrical systems requires some safety precautions:
- Always turn the ignition off when testing resistance
- Never probe moving engine components
- Keep your hands dry
- Avoid wearing loose jewelry
- Be extra careful around airbag circuits and hybrid/electric vehicle high-voltage systems
- Use insulated probes
Remember: standard multimeters are NOT designed for the high-voltage systems in hybrid and electric vehicles. Those require special equipment.
Our Best Multimeter UK: Top Picks for Accuracy, Safety and Value (2025)
Core Multimeter Functions for Automotive Diagnostics
Testing Voltage (DC)
Voltage testing is the most common multimeter function you’ll use on your vehicle. Here’s how to do it:
- Set your multimeter to DC voltage (V⎓), typically the 20V range
- Connect the black probe to a good ground (often the negative battery terminal)
- Touch the red probe to the point you want to test
- Read the display
What voltage readings tell you:
- A healthy battery shows 12.6V when the engine is off
- With the engine running, you should see 13.8-14.4V (showing the alternator is charging)
- Most sensors and electrical components need close to 12V to work properly
- Voltage drops (lower readings than expected) point to resistance problems
Try this: Test your battery before and after starting your car. The difference tells you if your charging system is working!
Testing Resistance (Ohms)
Resistance testing helps you find breaks in circuits and bad components. Here’s how:
- Turn off the ignition and disconnect the battery
- Set your multimeter to resistance (Ω)
- Connect the probes to both ends of what you’re testing
- Read the display
What resistance readings mean:
- 0 or very low reading = good connection (wires, switches when closed)
- OL (overload) or infinite reading = open circuit (broken wire, blown fuse)
- High but not infinite reading = partial connection (corrosion, damage)
- Specific value = component resistance (compare to specifications)
The continuity test (often shown as a speaker symbol) is a form of resistance testing that beeps when there’s a complete circuit. It’s super useful for quickly checking wires and connections!
Testing Current (Amperage)
Current testing is trickier because you must connect your meter “in line” with the circuit. Here’s the process:
- Set your multimeter to DC amps (A⎓), typically the 10A range
- Disconnect one end of the circuit you’re testing
- Connect the black probe to the disconnected source
- Connect the red probe to the other part of the circuit
- The circuit now flows through your meter, showing how much current is used
Important safety tip: Most multimeters have a fuse that protects the amperage circuit. If you try to measure too much current, you’ll blow this fuse. Always start with the highest amp setting.
Current testing applications:
- Finding parasitic drains that kill your battery overnight
- Testing starter current draw
- Checking if components are drawing the right amount of power
Practical Automotive Diagnostics with a Multimeter
Battery and Charging System Testing
Here’s a complete battery and charging system test using your multimeter:
- Battery rest test:
- Engine off for at least an hour
- Set multimeter to 20V DC
- Test across battery terminals
- Good reading: 12.6V or higher
- Low reading (under 12.4V): Battery needs charging
- Alternator output test:
- Engine running at 1500 RPM
- Headlights and fan on high
- Test across battery terminals
- Good reading: 13.8-14.4V
- Low reading: Alternator problems
- High reading (over 15V): Voltage regulator issues
- Voltage drop test:
- Engine running
- Test from battery positive to alternator output
- Good reading: Less than 0.5V drop
- Higher drop: Connection problems
Starter System Diagnostics
Is your car struggling to start? Test the starter system:
- Battery load test:
- Have someone crank the engine
- Test battery voltage during cranking
- Good battery: Stays above 9.6V
- Bad battery: Drops below 9.6V
- Starter circuit test:
- Set meter to voltage
- Test at the starter solenoid while someone turns the key
- Should see battery voltage
- No voltage: Check ignition switch, neutral safety switch, or starter relay
- Starter current draw:
- Requires an amp clamp attachment
- Clamp around the positive battery cable
- Typical draw: 60-150 amps while cranking
- Higher draw: Mechanical problems
- Lower draw: Electrical connection issues
Testing Fuses, Relays, and Switches
These simple tests can save you hours of troubleshooting:
Fuse testing:
- Set meter to continuity or resistance
- Touch probes to both ends of the fuse
- Good fuse: Near 0 ohms or continuity beep
- Bad fuse: OL or infinite reading
Relay testing (resistance):
- Remove relay
- Set meter to resistance
- Test between specific pins (check diagram for your relay)
- Compare to specifications
Switch testing:
- Set meter to continuity
- Connect to both terminals of the switch
- Operate the switch
- Should show continuity when closed, open circuit when open
Diagnosing Lighting and Accessory Problems
Got a light or accessory that’s not working? Try this process:
- Check for power:
- Set meter to DC voltage
- Connect black probe to ground
- Touch red probe to the power wire
- Should read battery voltage when activated
- Check for ground:
- Set meter to DC voltage
- Connect red probe to a known positive
- Touch black probe to the ground wire
- Should read battery voltage with good ground
- Test the component:
- Remove component
- Set meter to resistance
- Test across terminals
- Compare to specifications or known good component
Checking Sensors and Electronic Components
Modern cars have many sensors that control engine performance. Here’s how to test them:
Oxygen sensor test:
- Set meter to DC voltage
- Connect black probe to good ground
- Connect red probe to sensor signal wire
- With engine warm and running, should see 0.1-0.9V fluctuating
Temperature sensor test:
- Set meter to resistance
- Disconnect sensor connector
- Measure across sensor terminals
- Compare to specifications at different temperatures
Coolant temperature sensor typical readings:
- Cold engine: 5,000-100,000 ohms
- Hot engine: 200-400 ohms
Mass airflow sensor test:
- Set meter to DC voltage
- Back-probe the signal wire
- With engine running, voltage should change smoothly with throttle
Tracing Wiring Problems and Short Circuits
Finding electrical gremlins is easier with these techniques:
Testing for shorts to ground:
- Disconnect battery
- Remove the related fuse
- Set meter to resistance
- Connect one probe to the fuse terminal, the other to ground
- Low resistance indicates a short
Finding breaks in wires:
- Disconnect battery
- Set meter to continuity
- Connect one probe to each end of the suspected wire
- No continuity means broken wire
- Use piercing probes to test sections of the wire
Advanced Multimeter Techniques for Modern Vehicles
Testing Computer Inputs and Outputs
Modern engine computers (ECMs/PCMs) can also be tested with a multimeter:
- Find the pin diagram for your vehicle’s computer
- Set meter to appropriate function (usually DC voltage)
- Back-probe the connector (never disconnect with key on)
- Compare readings to specifications
Common sensor voltage ranges:
- Throttle position: 0.5-4.5V (varies with throttle position)
- MAP sensor: 0.5-4.5V (varies with engine load)
- Crankshaft position: AC voltage pulses or digital 0-5V
Diagnosing Electronic Control Modules
When you suspect a computer problem:
- Check all power and ground connections first
- Verify sensor inputs are reaching the computer
- Test outputs from the computer to components
- Look for corrosion or damage on connectors
Remember that a scan tool is often needed alongside your multimeter for complete diagnostics on modern vehicles.
Using Multimeter Data with Scan Tool Information
For the best results on newer vehicles, combine both tools:
- Use scan tool to identify trouble codes
- Use multimeter to verify actual voltages and signals
- Compare actual readings to expected values
- Trace problems through the circuit using the multimeter
This approach finds problems that each tool might miss alone.
Special Testing Procedures for Hybrid/Electric Vehicles
Warning: Hybrid and electric vehicles have high-voltage systems that can be deadly! Never use a standard multimeter on orange cables or components marked “High Voltage.”
For the 12V systems in these vehicles, standard testing applies. For high-voltage systems, you need:
- Special high-voltage insulated tools
- Proper training and safety equipment
- Service manual procedures
Troubleshooting Common Multimeter Issues
Understanding Error Readings
Don’t panic if you see these common error messages:
- OL (Over Limit): Reading is beyond the range setting
- -0.00: Probes are reversed (negative voltage)
- Battery symbol: Replace your meter’s battery
- Bouncing/unstable readings: Bad connection or interference
Calibration and Maintenance Tips
Keep your multimeter working properly:
- Store in a clean, dry place
- Replace the battery annually or when low
- Check test leads for cracks or damage
- Clean contacts with electrical contact cleaner
- Have professional calibration done if accuracy is critical
When to Use Other Diagnostic Tools
A multimeter is powerful but has limits. Consider other tools when:
- You need to test intermittent problems
- You’re diagnosing communication network issues
- You need to see signal waveforms
- You’re working with airbag systems
Good companions to your multimeter include:
- Scan tool for trouble codes
- Test light for quick circuit checks
- Oscilloscope for viewing signal waveforms
Resources for Further Learning
Want to learn more? Check out:
- Automotive repair manuals for your specific vehicle
- Online forums for your car make
- YouTube tutorials on automotive electrical diagnosis
- Community college automotive courses
Conclusion
Now you know the multimeter basics for automotive diagnostics that can save you time, money, and frustration! Remember these key points:
- Safety first! Always disconnect the battery before testing resistance.
- Use voltage testing to check power supply to components.
- Use resistance testing to find broken wires and bad connections.
- Use current testing carefully to find abnormal power draws.
- Start simple with battery and fuse tests before diving deeper.
- Learn your meter’s functions thoroughly for best results.
Ready to put your new skills to work? Here’s what to do next:
- Practice on simple systems like interior lights first
- Document your readings so you know what’s normal
- Create a testing routine that you follow each time
- Invest in good test leads for more accurate results
- Join online forums where you can ask questions
With a little practice, your multimeter will become your most trusted tool for solving car electrical problems. No more guessing—now you can know exactly what’s happening in your vehicle’s electrical systems!
Have you used a multimeter on your car before? What electrical problems will you tackle first? Your automotive diagnostic adventures are just beginning!
