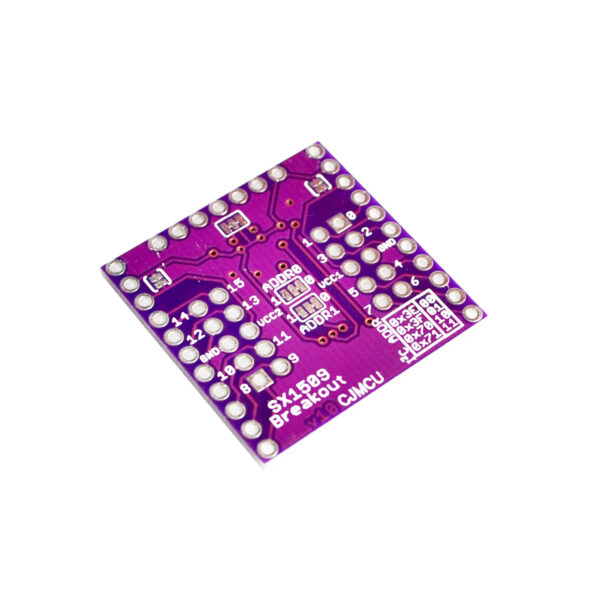

SX1509 16-IO Expander 16 extra channels of GPIO


QuantityDiscountDiscounted Price
5 - 9 5% £4.51
10 + 10% £4.28

SX1509 16-IO Expander 16 extra channels of GPIO
SX1509 16-IO Expander 16 extra channels of GPIO £4.75
royal mail.jpg

FREE Shipping with Royal Mail for orders over £25


If ordered before 3 p.m.



SX1509 16-IO Expander Key Features:

  • Highly Versatile: Get 16 additional GPIO channels, expanding your project’s reach and capability.
  • Dual Banks for Power: Features Bank A (0 to 7) and Bank B (8 to 15) each supplied by VCC1 and VCC2 respectively.
  • PWM & Digital IO Support: All pins are designed to support both PWM and regular digital IO functionalities.
  • Broad Input Voltage Range: Accepts an input voltage ranging from 1.425 to 3.6 VDC, giving you flexibility in power source choices.
  • Logical Design: Comes with a logic input voltage spanning from 0.8 to 5.5 VDC.
  • Compact and Lightweight: With dimensions at a mere 30 x 30 mm and weighing just 2 grams, it is perfect for space-conscious projects.
  • Maximized Efficiency: A maximum operating current of just 460 uA ensures optimized power consumption.

Whether you’re designing a robot, smart home system, or any electronics project that needs extra GPIOs, the SX1509 16-IO Expander from Kunkune has got you covered. Remember, it’s not just about expanding; it’s about expanding with quality and reliability.
