ESP32 Starter Kit with WiFi & Bluetooth – 17 Sensors & Components

The ESP32 Starter Kit Basic is a complete development kit for anyone looking to explore electronics, IoT, and programming. Designed for beginners, students, and hobbyists, this comprehensive kit includes everything needed to get started with the ESP32 microcontroller — from sensors and displays to essential components for prototyping.

No soldering required — just plug in, connect, and start experimenting.

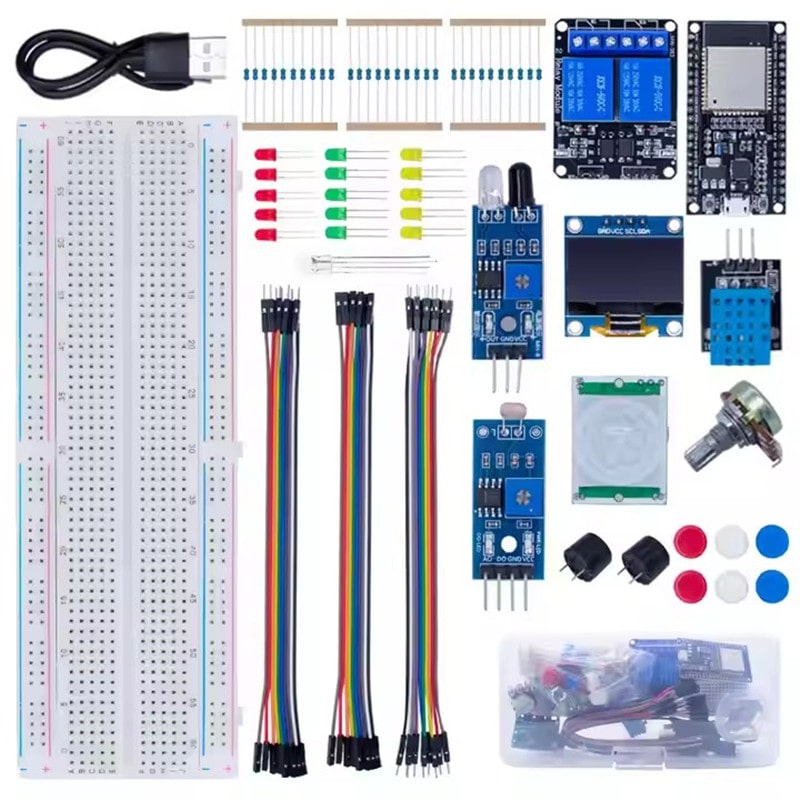

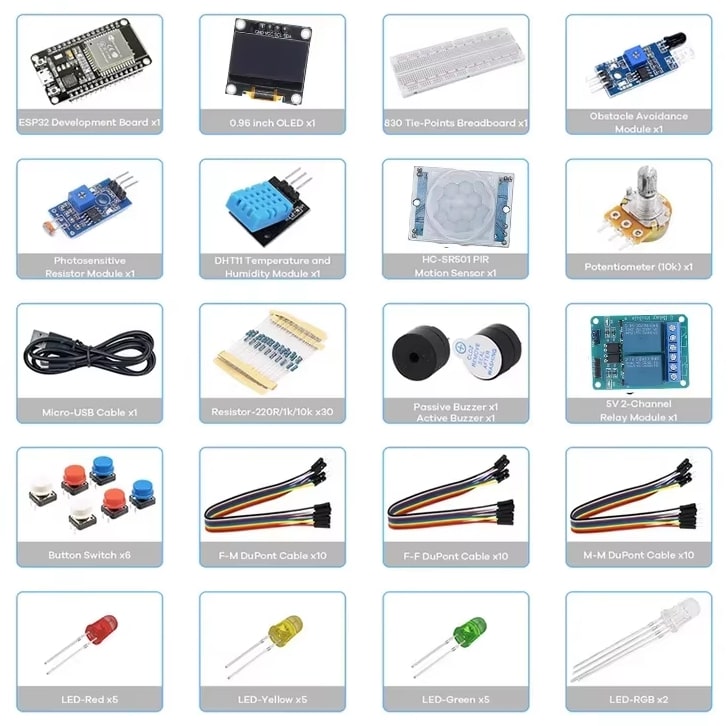

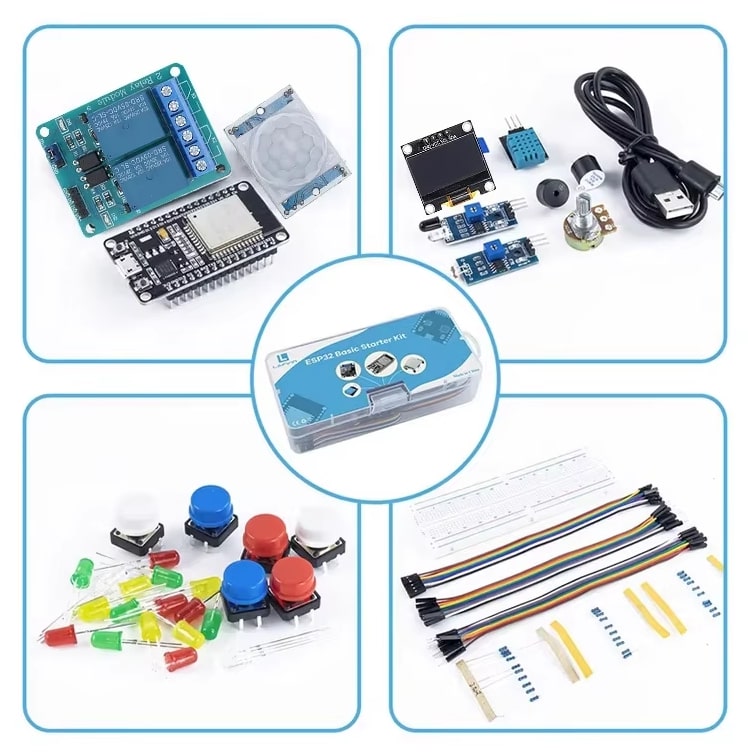

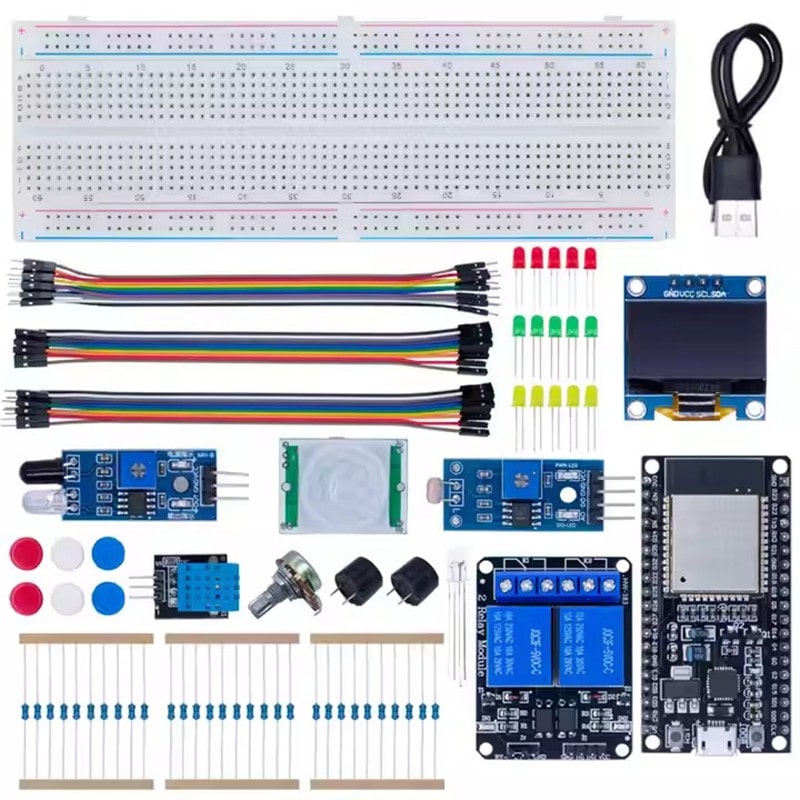

ESP32 Kit Includes

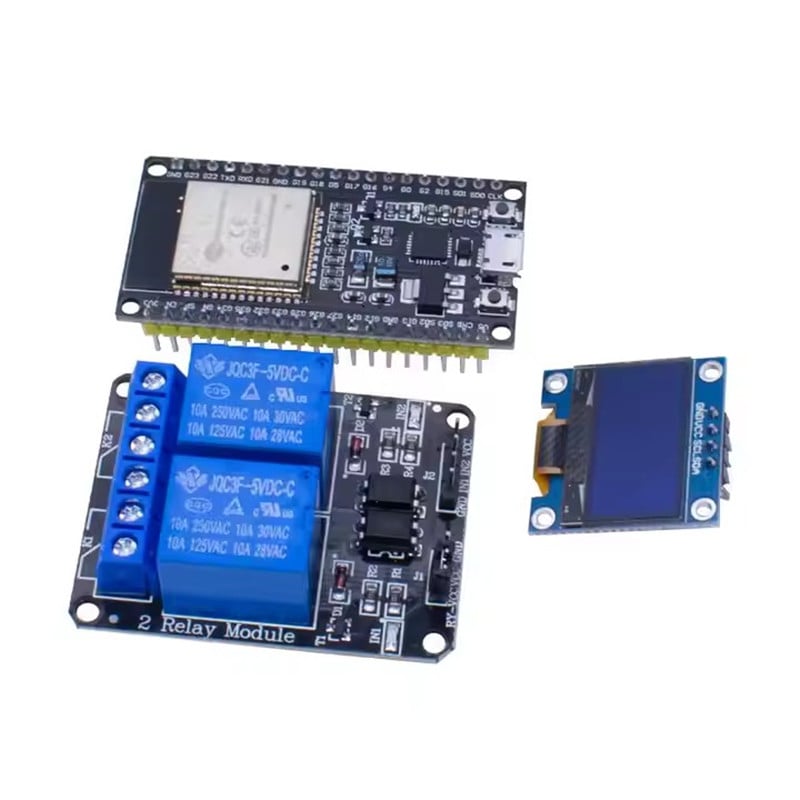

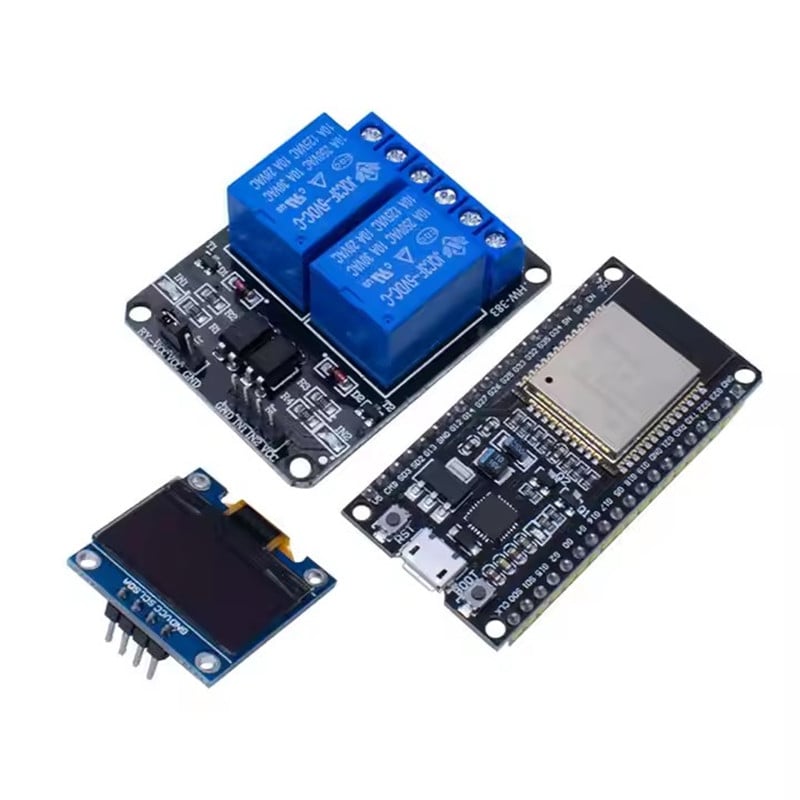

1. ESP32 Development Board Module ×1 – Dual-core microcontroller with Wi-Fi and Bluetooth connectivity
2. 0.96″ OLED Display ×1 – Compact screen for displaying data and sensor readings
3. 830-hole Breadboard ×1 – Perfect for quick, solder-free prototyping
4. Infrared Obstacle Avoidance Module ×1 – Detects obstacles for robotics and automation projects
5. Photoresistor (Light Sensor) Module ×1 – Measures light intensity
6. DHT11 Temperature & Humidity Sensor Module ×1 – Reads environmental data for IoT applications
7. HC-SR501 PIR Motion Sensor ×1 – Detects human movement for security or smart home projects
8. Potentiometer 10kΩ ×1 – Adjustable resistor for analog input control
9. Micro-USB Cable ×1 – For programming and powering the ESP32
10. Resistors 1kΩ / 10kΩ / 220Ω (10 pcs each) – Common resistor values for various circuits
11. Passive Buzzer ×1 – Produces tone output via code control
12. Active Buzzer ×1 – Generates sound automatically when powered
13. 5V 2-Way Relay Module ×1 – Switches higher voltage or current loads safely
14. Switch Keycaps ×6 – Useful for building custom input panels
15. Dupont Jumper Wires (F-M ×10, F-F ×10, M-M ×10) – Flexible wiring for breadboard connections
16. LEDs (Red ×5, Blue ×5, Green ×5) – Ideal for visual indicators and testing
17. RGB LED ×1 – Learn about color control and PWM with a multi-color LED

Key Benefits

• Complete Starter Solution – All the essential components to explore embedded systems, IoT, and sensor integration.
• Wi-Fi + Bluetooth Ready – The ESP32 enables wireless communication for modern smart device projects.
• Easy Prototyping – Breadboard-friendly components and jumper wires eliminate the need for soldering.
• Versatile Learning Platform – Suitable for use with Arduino IDE, MicroPython, or ESP-IDF.
• Educational and Practical – Ideal for students, makers, and hobbyists working on automation, monitoring, or data-logging projects.

The ESP32 dual-core processor runs at 240MHz and includes integrated WiFi 802.11 b/g/n and Bluetooth 4.2 BR/EDR and BLE capabilities. With 30 GPIO pins, this development board supports multiple communication protocols including I2C, SPI, and UART, making it compatible with a wide range of sensors and modules.

The included 0.96″ OLED display uses I2C communication and provides 128×64 pixel resolution for displaying sensor data, graphics, and text. The DHT11 sensor accurately measures temperature (0-50°C) and humidity (20-90% RH), while the HC-SR501 PIR sensor detects motion up to 7 meters away with adjustable sensitivity.

This kit supports dozens of beginner-friendly projects including LED control, temperature monitoring, motion detection alarms, light-activated systems, and IoT dashboards. The 830-point breadboard allows for complex circuit building without permanent connections, and the included jumper wires provide flexible connectivity options.

Note: This kit does not include printed guides or manuals. Comprehensive tutorials, code examples, and project instructions are readily available online through the Arduino community, YouTube, and maker forums.
