Buck Boost Converter 60W Key Features:
- Dual Functionality: Capable of both step-up and step-down operations.
- Wide Voltage Range: Input voltage of 4.8-30V and output voltage of 0.5-30V.
- Precise Voltage Control: Adjustable potentiometer for setting desired output voltage.
- High Power and Efficiency: Superior performance with minimal power loss, surpassing XL6009 and LM2577.
- Quality Components: Features high-power MOS transistor and Schottky diode for efficient power transfer and heat dissipation.
- Current Limiting Capability: Ideal for constant current applications like battery charging.
- Built-in Anti-Backflow: Prevents reverse current flow during battery charging.
- Versatile Applications: Suitable for various needs from electronics projects to battery charging.
Product Specifications of DC DC Converter 60W:
- Input Voltage: 4.8-30V
- Output Voltage: 0.5-30V
- Output Current: Stable at 3A, up to 4A with enhanced heat dissipation
- Output Power: 35W (natural heat dissipation), 60W (enhanced)
- Conversion Efficiency: Approximately 88%
- Protection: Short circuit and input undervoltage protection
- Operating Frequency: 180KHz

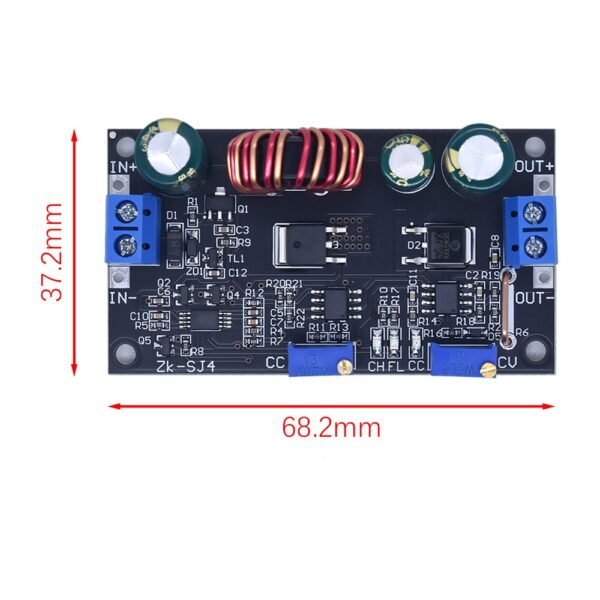

- Size: 68 x 37 x 22 mm (Length x Width x Height)
- Installation Hole Diameter: 3mm
- Weight: 38.7g
This adjustable voltage regulator module delivers reliable power conversion for demanding applications. The 88% conversion efficiency ensures minimal energy loss during operation, while the high-power MOS transistor and Schottky diode combination provides efficient power transfer with optimal heat dissipation characteristics.
The constant current capability makes this converter particularly suitable for battery charging applications and LED driver circuits. Built-in anti-backflow protection prevents reverse current during charging cycles, protecting both the converter and connected batteries. The adjustable potentiometer allows precise output voltage configuration between 0.5V and 30V, accommodating a wide range of electronic devices and circuits.
Multi-functional Use:
- Can be used as an ordinary buck-boost converter, battery charger, or high-power LED constant current drive module.
The module includes comprehensive protection features: short circuit protection safeguards against output faults, while input undervoltage protection automatically disconnects and recovers when input voltage drops below safe levels. Indicator lights provide real-time operation status monitoring. The included heat sink enables operation at higher power levels, supporting up to 60W output with proper cooling.
Precautions:
- Avoid short-circuiting IN- with OUT-.
- Ensure power supply capacity exceeds output load requirements.
- Be cautious of positive and negative terminals as there’s no reverse polarity protection.
- Maximum current of 4A, considering maximum output power.
- Includes output short-circuit protection.
- Features input undervoltage protection with automatic disconnect and recovery.
- Equipped with indicator lights for operation status.

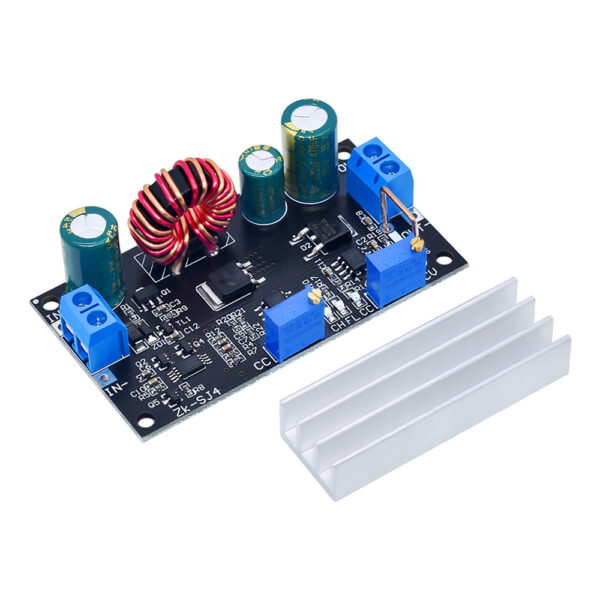

Additional Component:
- Comes with a heat sink for enhanced cooling.
