Professional Bridge Technology LCR Meter in Tweezer Format

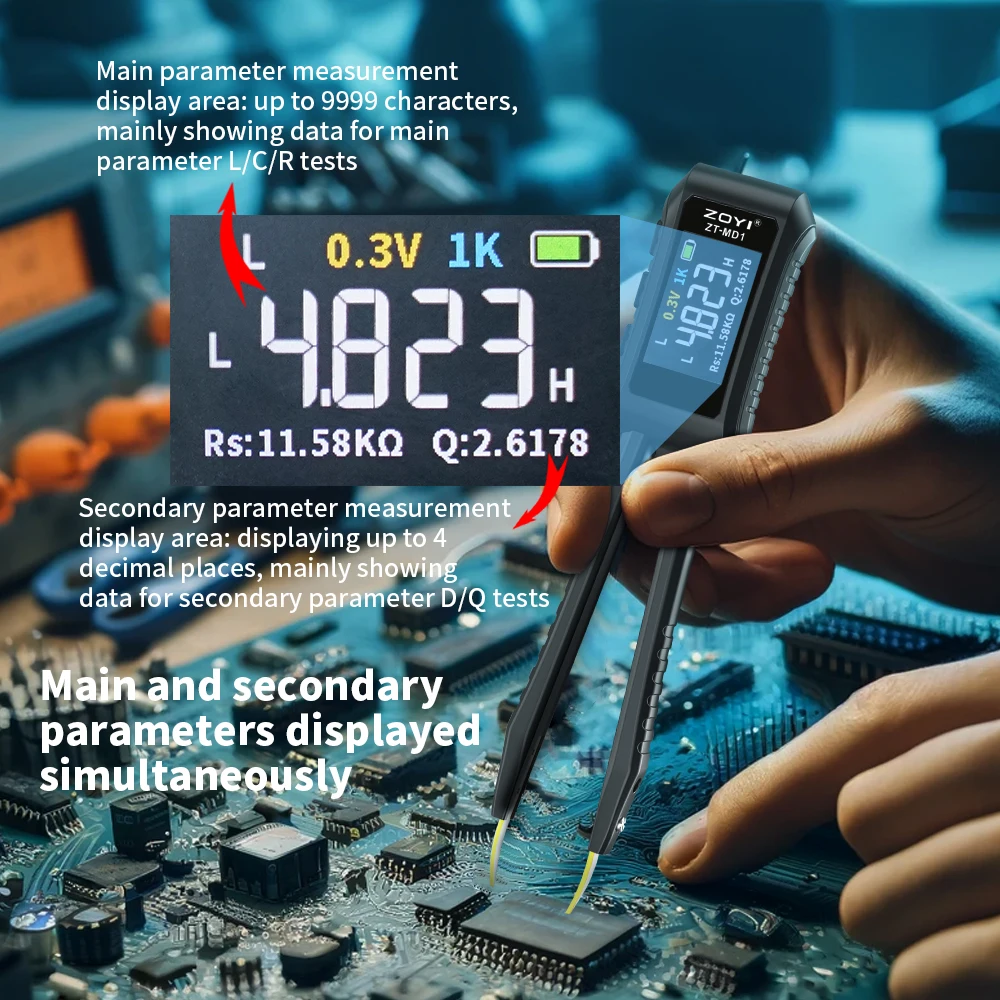

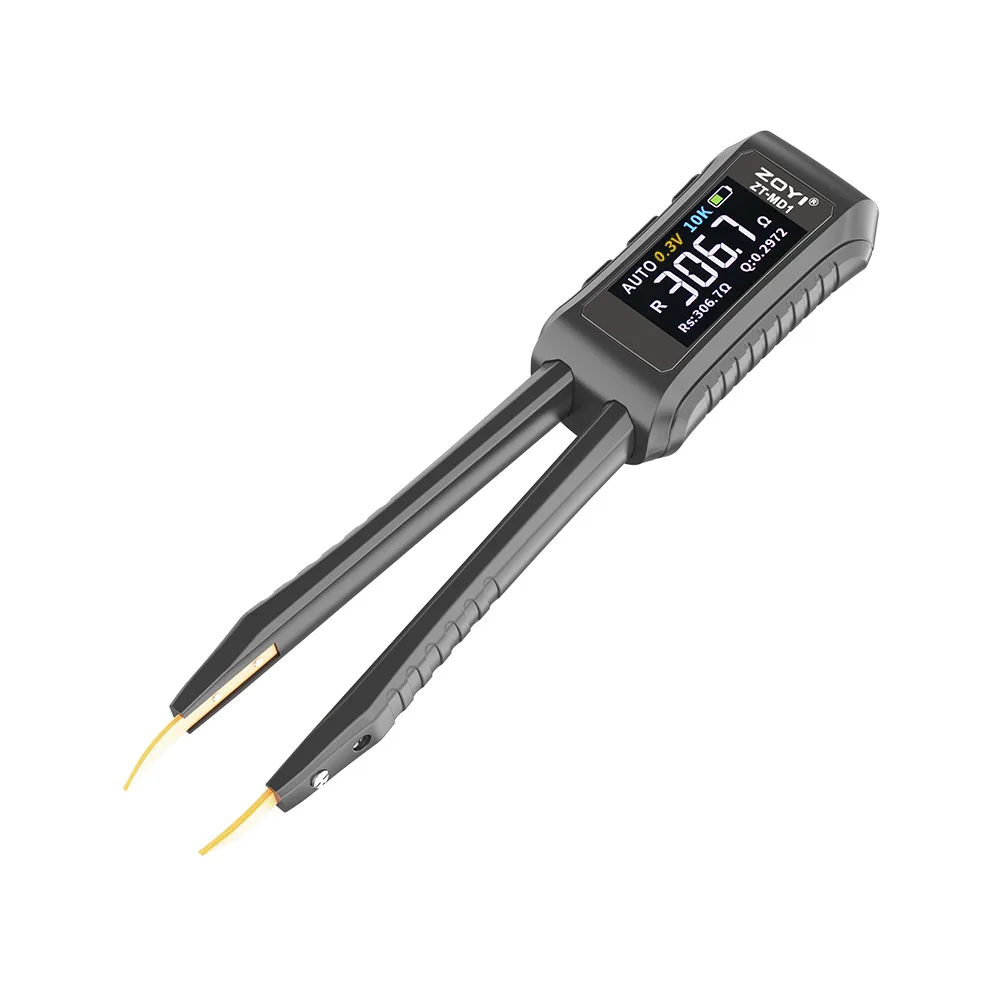

The ZOYI ZT-MD1 brings laboratory-grade component testing to your workbench in a portable tweezer format. Using professional 4-wire bridge measurement technology, this precision instrument delivers accurate LCR readings with comprehensive secondary parameters including ESR, Q factor, and dissipation factor.
Technical Specifications

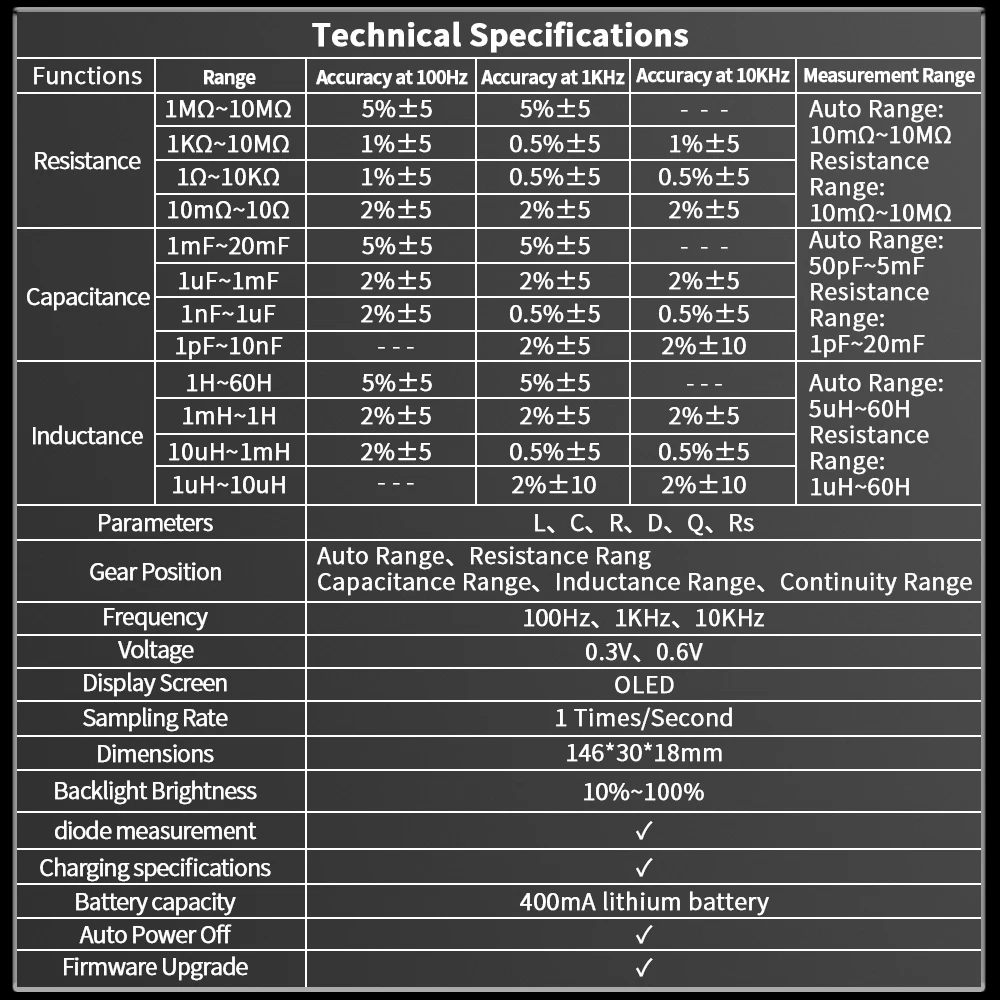

- Measurement Ranges: Resistance: 1mฮฉ-10Mฮฉ | Capacitance: 1pF-20mF | Inductance: 1ยตH-60H | Diode: 0.1V-16V
- Test Frequencies: 100Hz, 1kHz, 10kHz for frequency response analysis
- Accuracy: 0.5% typical with adjustable accuracy modes (0.5%, 2.5%, 10%)
- Test Voltages: 0.3V and 0.6V RMS for in-circuit testing

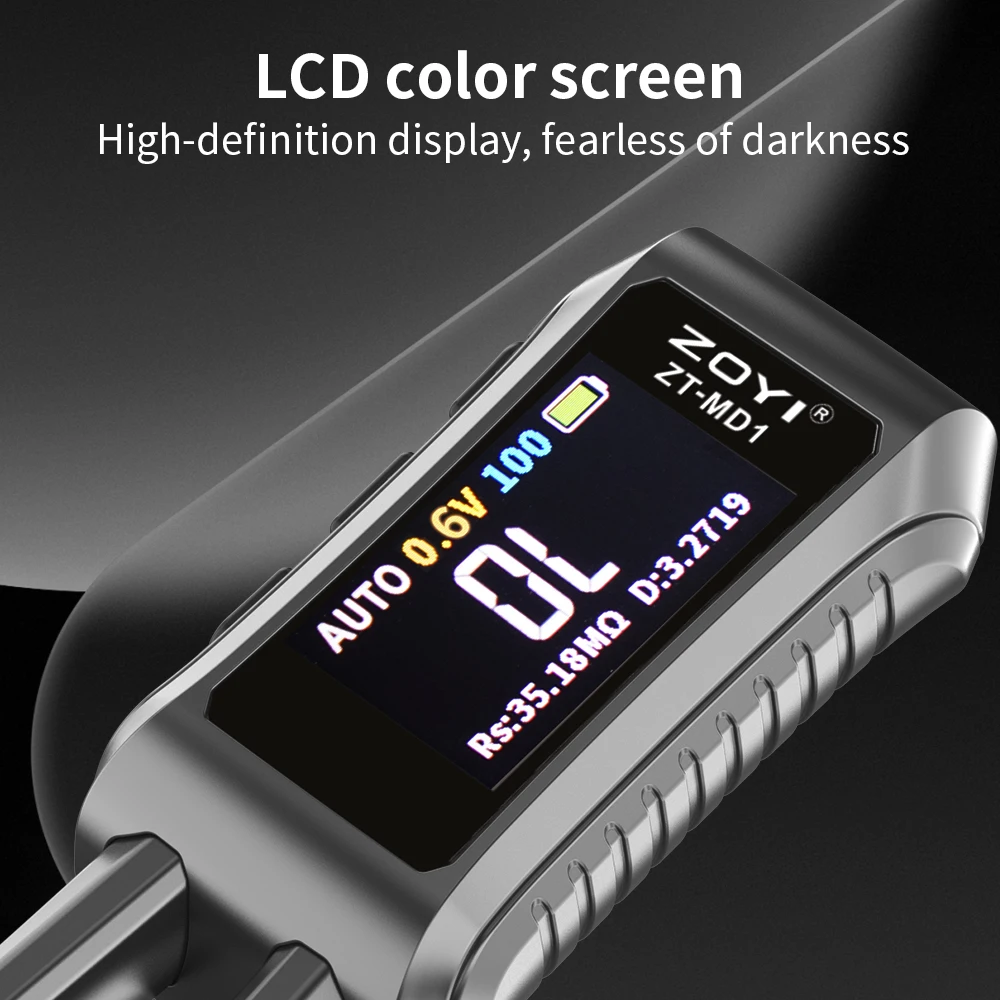

- Display: High-contrast reversible OLED for left/right-handed operation
- Processor: ARM Cortex-M4F (240MHz) for fast, accurate measurements

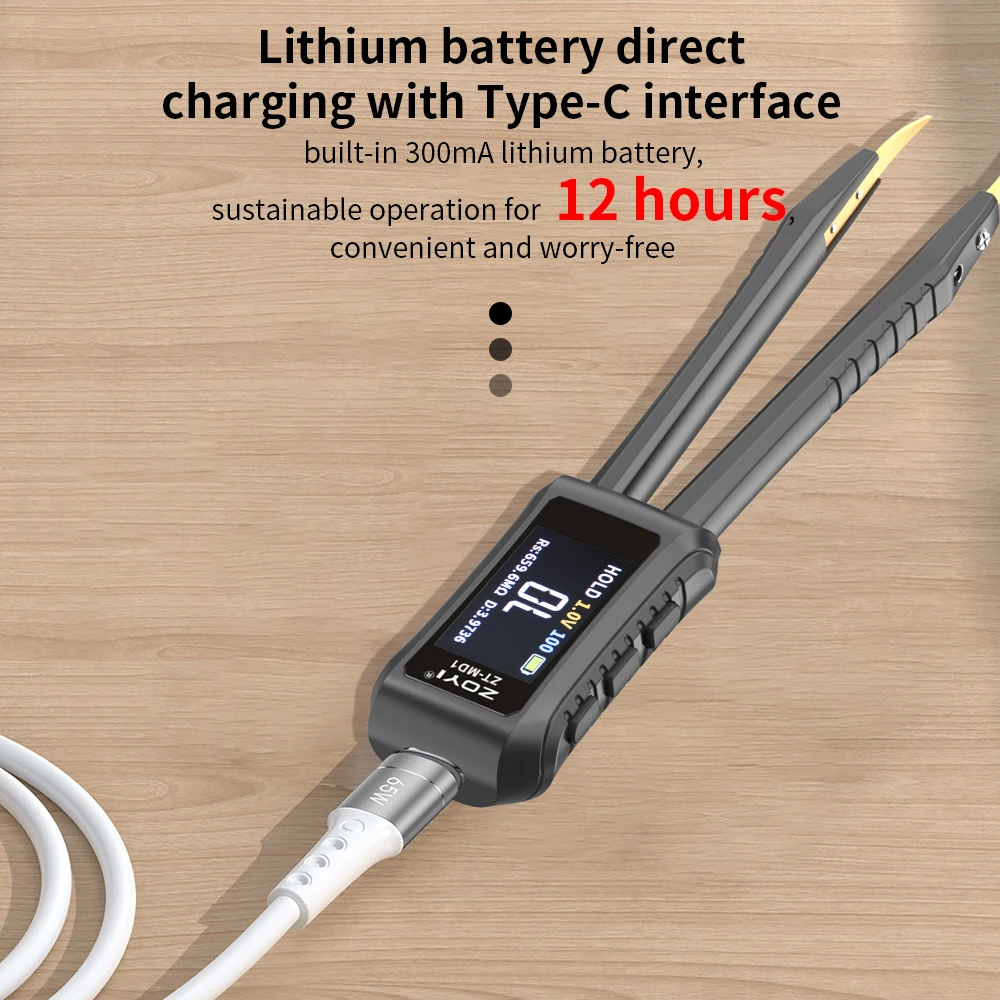

- Battery: 400mAh with USB-C charging
- Weight: 37g
Bridge Measurement Technology Advantages
True 4-wire bridge measurement eliminates lead resistance errors that plague basic component testers. This professional architectureโidentical to ยฃ1000+ bench LCR metersโprovides accurate milliohm measurements and reliable in-circuit testing at 0.3V to prevent semiconductor activation.
Comprehensive Component Analysis

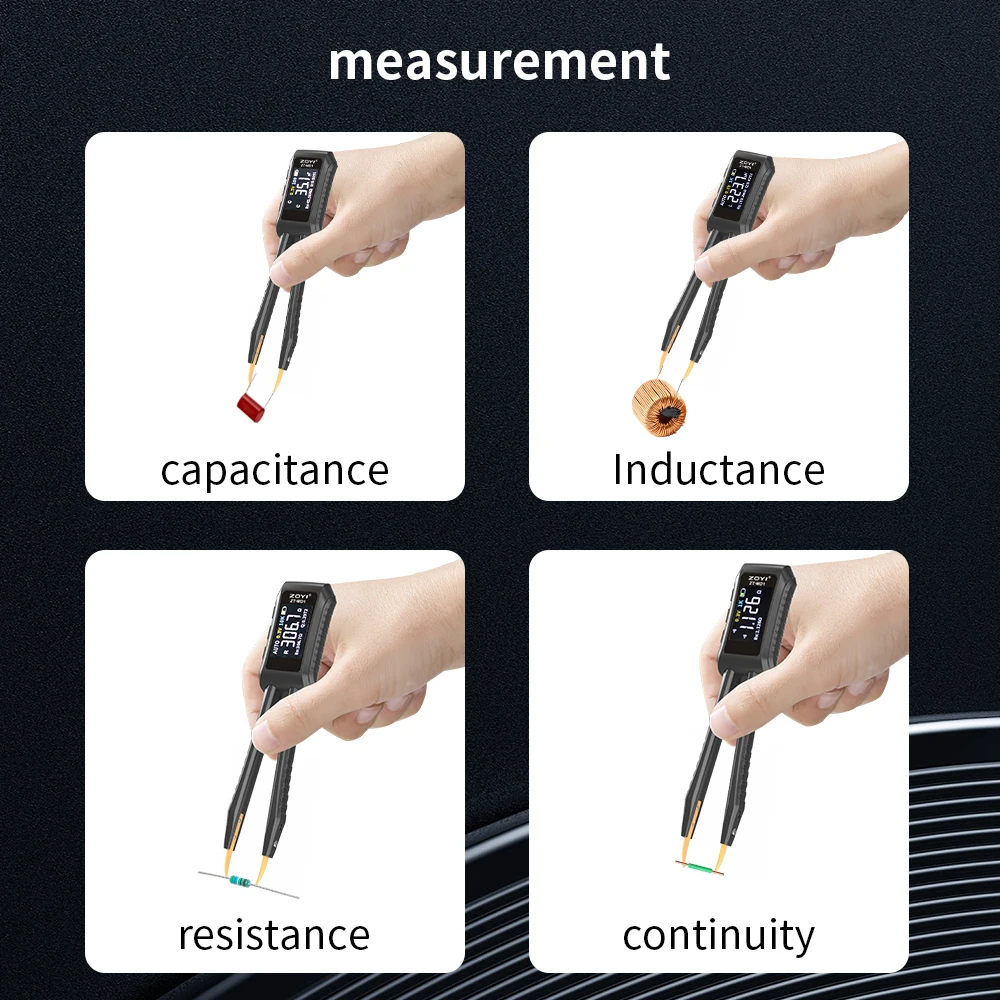

Capacitor Testing: Measure capacitance from 1pF to 20mF with ESR and dissipation factor. Identify failing electrolytic capacitors in power supplies before complete failure through ESR analysis across multiple frequencies.
Inductor Characterization: Test inductance from 1ยตH to 60H with Q factor and series resistance measurements. Assess coil quality, winding resistance for power calculations, and frequency response across the operating spectrum.
Precision Resistance: 4-wire Kelvin measurement technique provides accurate readings from 1mฮฉ to 10Mฮฉ, ideal for contact resistance verification and PCB trace testing.
Diode Testing: Automatic polarity detection with visual indication. Measures forward voltage from 0.1V to 16V regardless of probe orientation.
Professional Applications
- Electronics repair: ESR testing for power supply diagnostics
- Mobile device repair: Ultra-miniature 0201/0402 SMD component testing
- Quality control: Component verification and counterfeit detection
- R&D: Prototype component characterization and matching
- Education: Professional measurement technique training
Smart Features

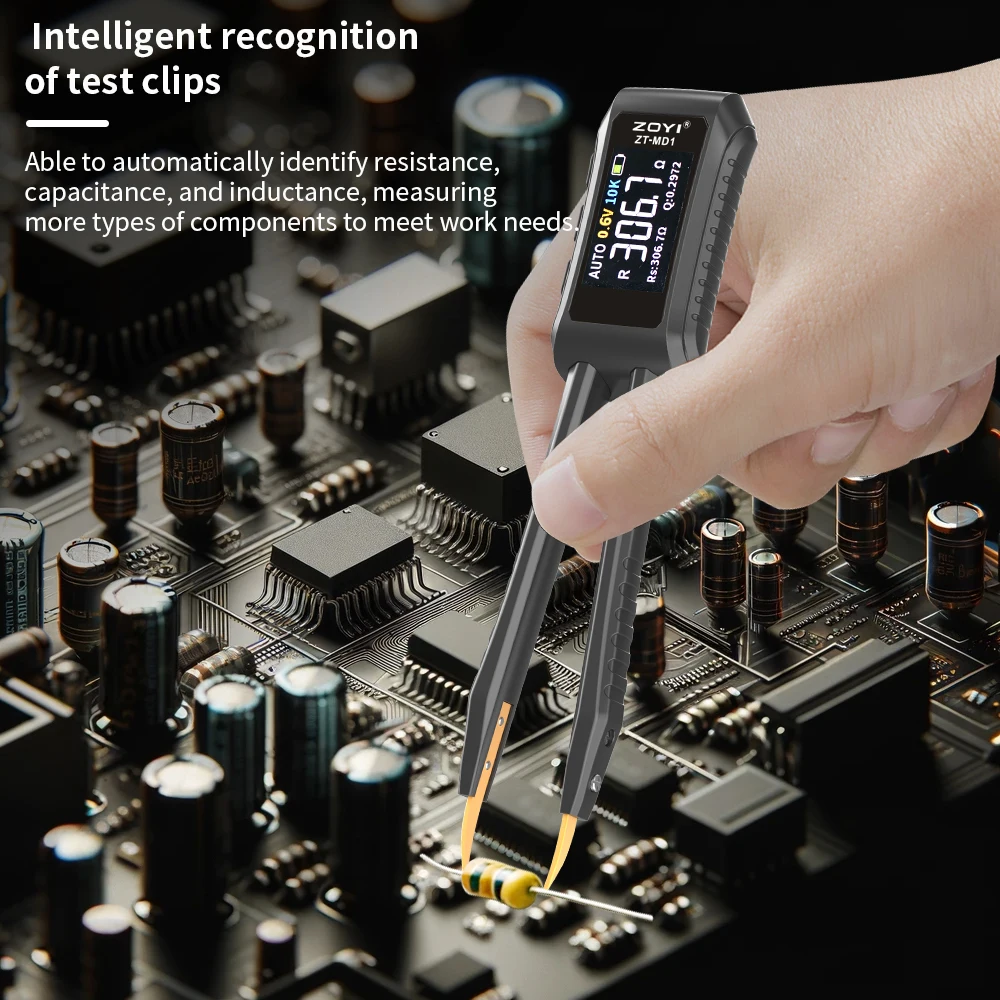

- Automatic component recognition (L/C/R/Diode)
- Multi-frequency testing reveals component behavior across spectrum
- In-circuit testing mode (0.3V) prevents semiconductor activation
- Calibration mode for accuracy maintenance
- Reversible display for left or right-handed users
| Feature | Basic Component Testers | ZOYI ZT-MD1 Bridge Technology | Professional Benefit |
|---|---|---|---|
| Measurement Method | Simple voltage/current | True 4-wire bridge circuit | Eliminates lead resistance errors |
| Accuracy | ยฑ5-10% typical | ยฑ0.5% adjustable modes | Laboratory-grade precision |
| Frequency Testing | Single frequency (1kHz) | 100Hz, 1kHz, 10kHz | See component behavior across spectrum |
| Secondary Parameters | None or limited | ESR, D, Q, Rs complete set | Professional component analysis |
| Capacitor Analysis | Basic capacitance only | Capacitance + ESR + D factor | Identify failing electrolytics early |
| Inductor Testing | Basic inductance only | Inductance + Q factor + Rs | Assess coil quality and losses |
| Resistance Range | Limited low-end | 1mฮฉ precision capability | Measure contact/trace resistance |
| In-Circuit Testing | Often unreliable | 0.3V safe mode | Test without component removal |
| Component Recognition | Manual mode selection | Automatic L/C/R/D detection | Faster, error-free identification |
| Display Quality | Basic LCD | High-contrast OLED | Clear readings in any lighting |
| Professional Features | Basic functionality | Calibration, data logging, reversible display | Maintainable professional tool |
| Build Quality | Consumer grade | ARM Cortex-M4F processor | Reliable for daily professional use |
Package Contents
- ZT-MD1 unit with precision tweezer tips
- USB-C charging cable
- Protective carrying case
- English user manual
- 1-year warranty
Free UK delivery available. Professional bridge measurement technology at a fraction of bench meter cost.
Zoyi ZT-MD1 LCR Tweezers Review by JazzTech (Jazzy Jane)
