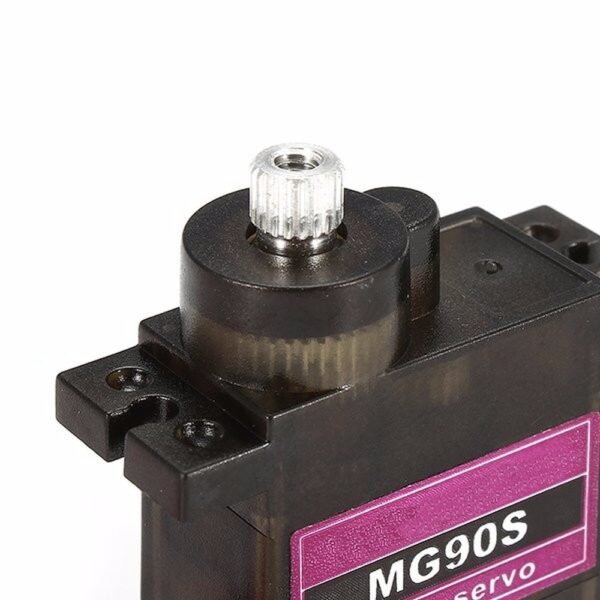

MG90 Servo Motor with Metal Gear

Tiny and lightweight with high output power, this tiny servo is perfect for RC airplanes, helicopters, Quadcopters, Boats, or robots.
This servo has metal gears for added strength and durability.

The servo can rotate approximately 180 degrees (90 in each direction), working like the standard kinds, but smaller.
Any servo code can be used, hardware or library, to control these servos. Good for beginners who want to make stuff move without building a motor controller
with feedback & gear box, especially since it will fit in small places.

Specifications of the mg90 servo motor

Weight: 13.4 g
Dimension: 22.5 x 12 x 35.5
Stall torque: 1.8 kgf·cm (4.8V )
Operating speed: 0.1 s/60 degree
Operating voltage: 4.8 V – 6.0V
Dead band width: 5 µs
Connector Wire Length: 175mm

Red: Battery Positive
Brown: Battery Negative
Orange: Signal

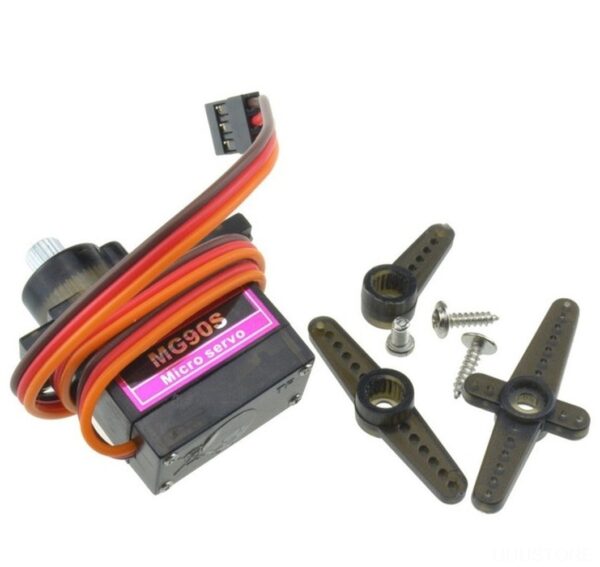

Package includes:
1 x MG90 Gear Micro Servo
1 x 175 mm wire
3 x Servo Horns
3 x Screw
