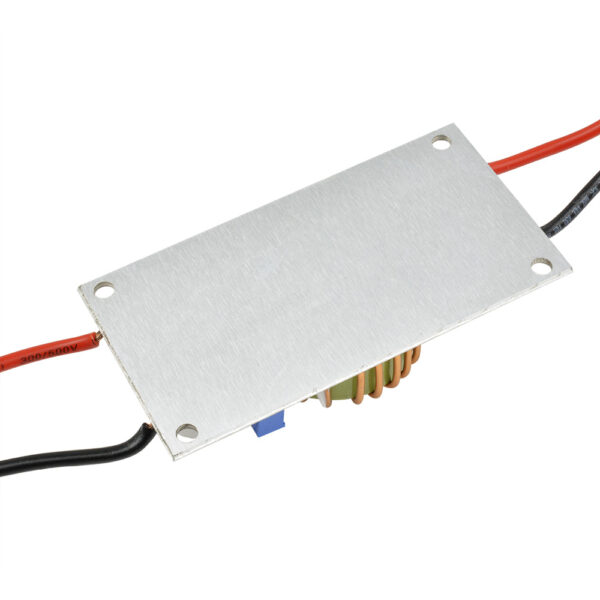

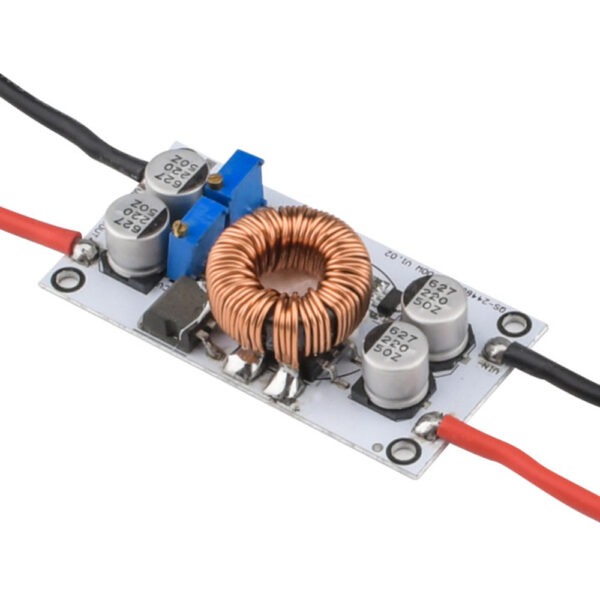

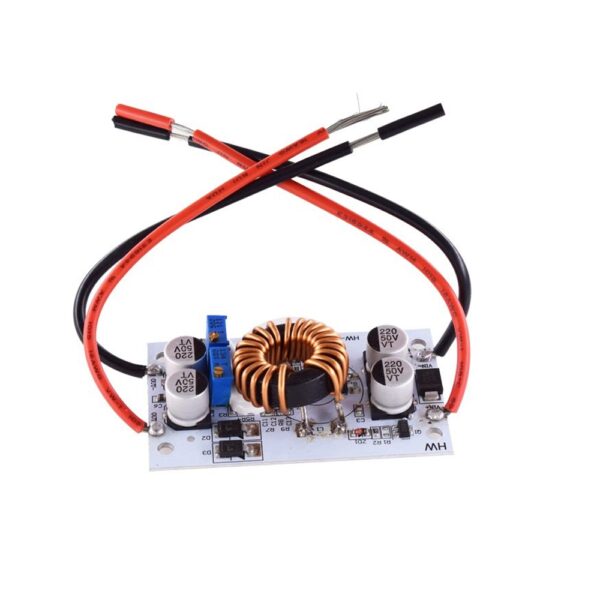

250W 10A Boost Converter Step Up Module 8-48V to 12-50V Adjustable

Trustpilot

£6.90

Out of stock

royal mail.jpg

FAST AND FREE UK DELIVERY
FREE Shipping with Royal Mail for orders over £25

trustpilot top 03

TRUSTPILOT
icon throphy Check out our Trutpilot Reviews! icon throphy


SAME DAY DISPATCH
If ordered before 3 p.m.


MORE WAYS TO PAY

250W 10A Boost Converter Key Features:

  • Powerful Boost Module: 250W boost constant current module for efficient voltage stepping.
  • Input Voltage Range: DC 8.5V-48V.
  • High Input Current: 10A Max (use heat dissipation above 8A to avoid damage).

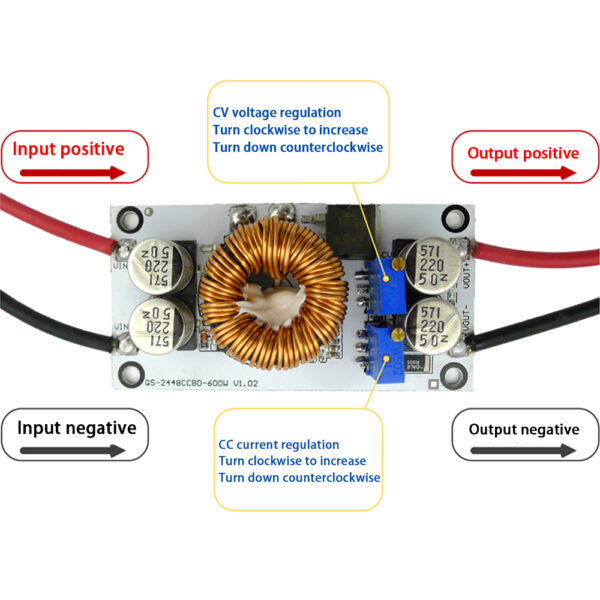

  • Adjustable Output: Voltage from 10-50V and current up to 10A, continuously adjustable.
  • Efficient and Quiet: Low quiescent working current of 10mA, increasing with output voltage.
  • High Conversion Efficiency: Up to 96%, varies with input/output parameters.
  • Safety Protections: Overcurrent protection and input reverse connection protection.
  • Working Frequency: 150KHz.
  • Operating Temperature: -40 to +85 degrees Celsius (enhanced heat dissipation recommended for high temperatures).
  • Module Weight: 50 grams.

Applications for 250W 10A Boost Converter :

  • DIY Regulated Power Supply: Input 12V, adjustable output from 12-50V.
  • Versatile Power Supply: Suitable for electronic equipment with adjustable output values.
  • Car Power Supply: Can power laptops, PDAs, or digital products.
  • High-Power Mobile Power Supply: Combine with a 12V lithium battery pack for portable laptop charging.
  • Solar Panel Regulation: Ideal for stabilizing solar panel outputs.
  • Battery Charging: Suitable for charging storage batteries and lithium batteries.

Precautions:

  • Avoid short-circuit current adjustments.
  • Ensure output voltage is higher than input for large current output.
  • Prioritize good heat dissipation under heavy load.
  • Connect input voltage before load when dealing with large loads.

Physical Dimensions:

  • Size: 70mm x 42mm x 13mm
