Mini560 5V-20V To 3.3V/5V/9V/12V 5A Step Down Buck Converter Power Supply

Trustpilot
-24% -24%

Original price was: £1.90.Current price is: £1.45.

QuantityDiscountDiscounted Price
5 - 9 5% £1.38
10 + 10% £1.31

Add to Cart

Mini560 DC Step Down Buck Converter Voltage Regulator Power Supply Board 3.3V 5V 9V 12V
Mini560 5V-20V To 3.3V/5V/9V/12V 5A Step Down Buck Converter Power Supply £1.90 Original price was: £1.90.£1.45Current price is: £1.45.
royal mail.jpg

FAST AND FREE UK DELIVERY
FREE Shipping with Royal Mail for orders over £25

trustpilot top 03

TRUSTPILOT
icon throphy Check out our Trutpilot Reviews! icon throphy


SAME DAY DISPATCH
If ordered before 3 p.m.


MORE WAYS TO PAY

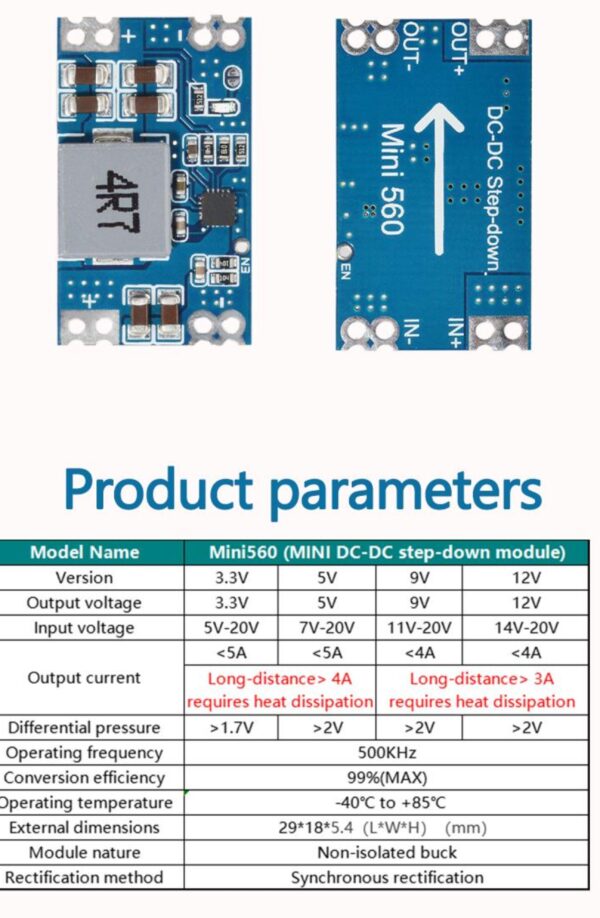

Features of Mini560 Step Down Buck Converter

Input 5V-20V To 3.3V/5V/9V/12V 5A

High efficiency, high stability, high cost performance.
Ultra-small size, very easy to be embedded in each system
Stamp hole design, user-friendly welding. It is also convenient for industrial use of patches
High conversion efficiency and low heat generation.

DC DC Converter Parameters:

Input: 5-20V (It is a step down module, input should be higher than selected output model minimum 2V)
Model: Mini560
Voltage Output: 3.3V / 5V / 9V / 12V (Optional)
Switching frequency: 500KHz
Conversion efficiency: 99% (maximum)
Working temperature: -40 -85°C
Module nature: non-isolated buck
Rectification method: Synchronous rectification

Note: Minimum difference in the voltage 2V
Stable output voltage.

Module size:
29 x 18 x 5.4mm
