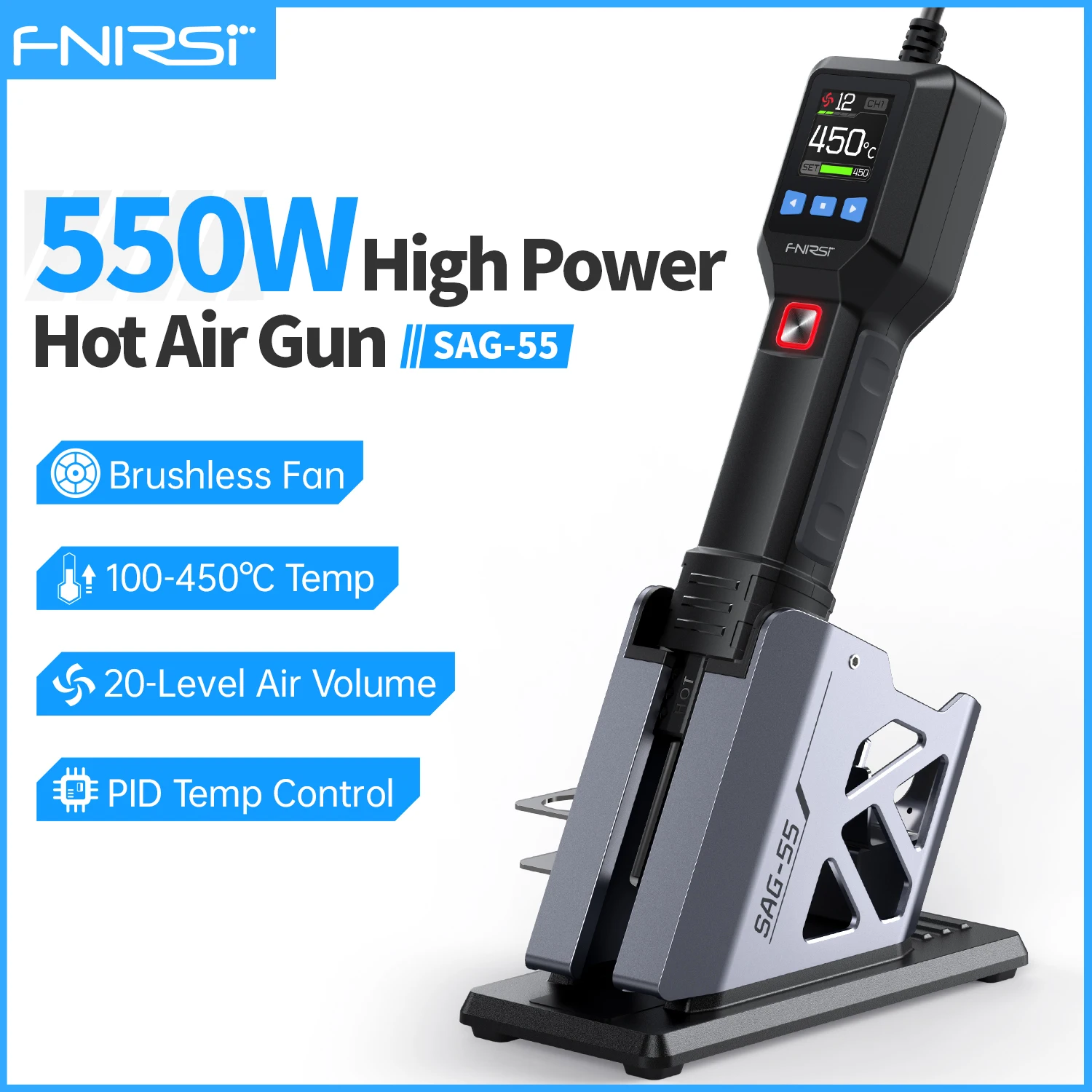

FNIRSI SAG-55 Micro Hot Air Gun with Stand BGA Rework

The FNIRSI SAG-55 is a compact, professional-grade hot air gun built for precision electronics work. Whether you’re reflowing BGA chips, desoldering SMD components, or applying heat shrink to wiring, it delivers the controlled heat and airflow you need — in a tool small enough to keep on any bench.

• ✓ PID Temperature Control — Precise, stable heat from 100°C to 450°C with rapid warm-up and minimal thermal shock to components
• ✓ Brushless Fan with 20 Speed Levels — Quiet operation under 65dB with smooth, linear airflow adjustment up to 80L/min for accurate, consistent desoldering
• ✓ Magnetic Smart Standby — Built-in magnetic sensor automatically activates heating when lifted and enters standby when returned to the stand — no buttons needed

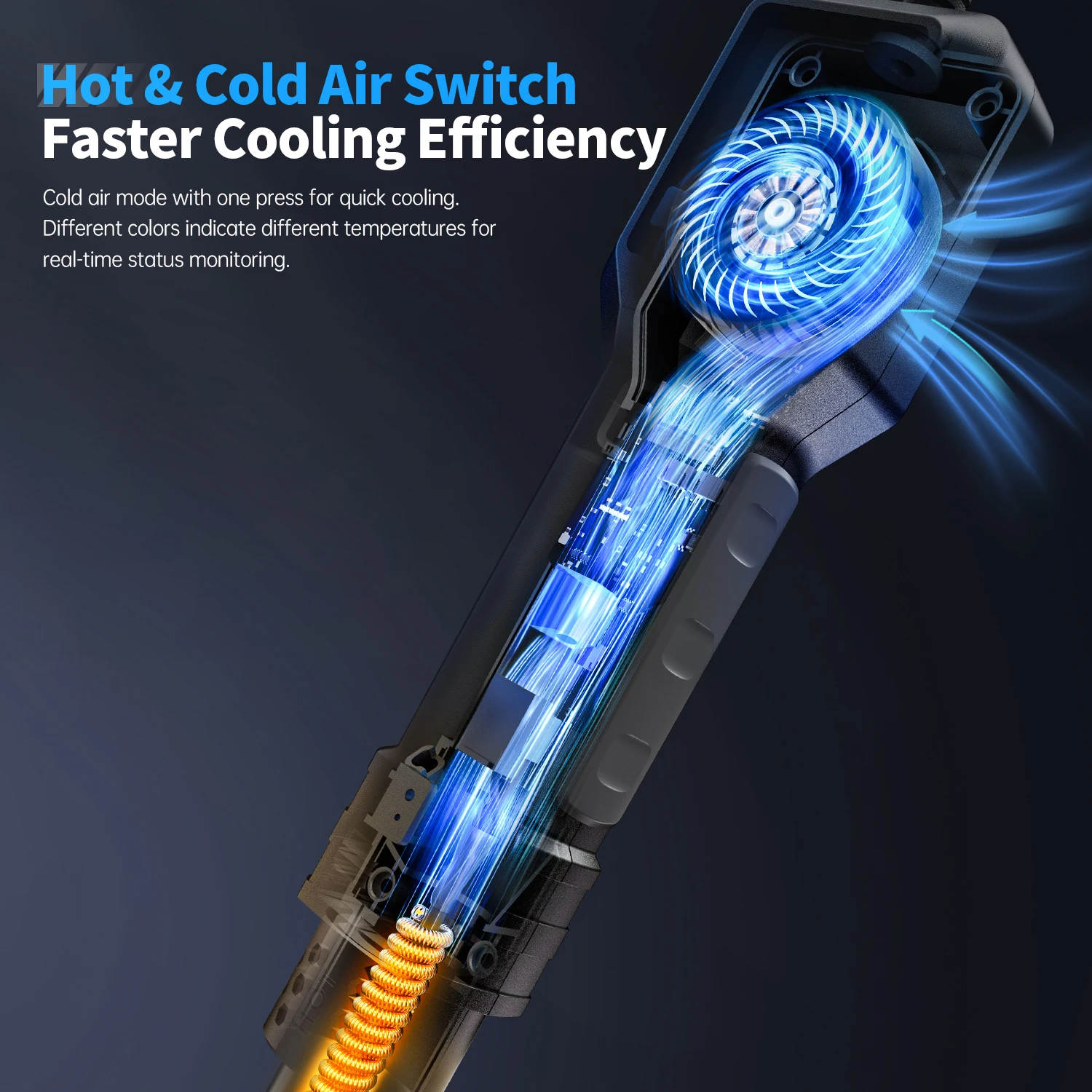

• ✓ Rapid Cooling Mode — One-press cold air function accelerates cool-down, protecting the heating element and extending its lifespan

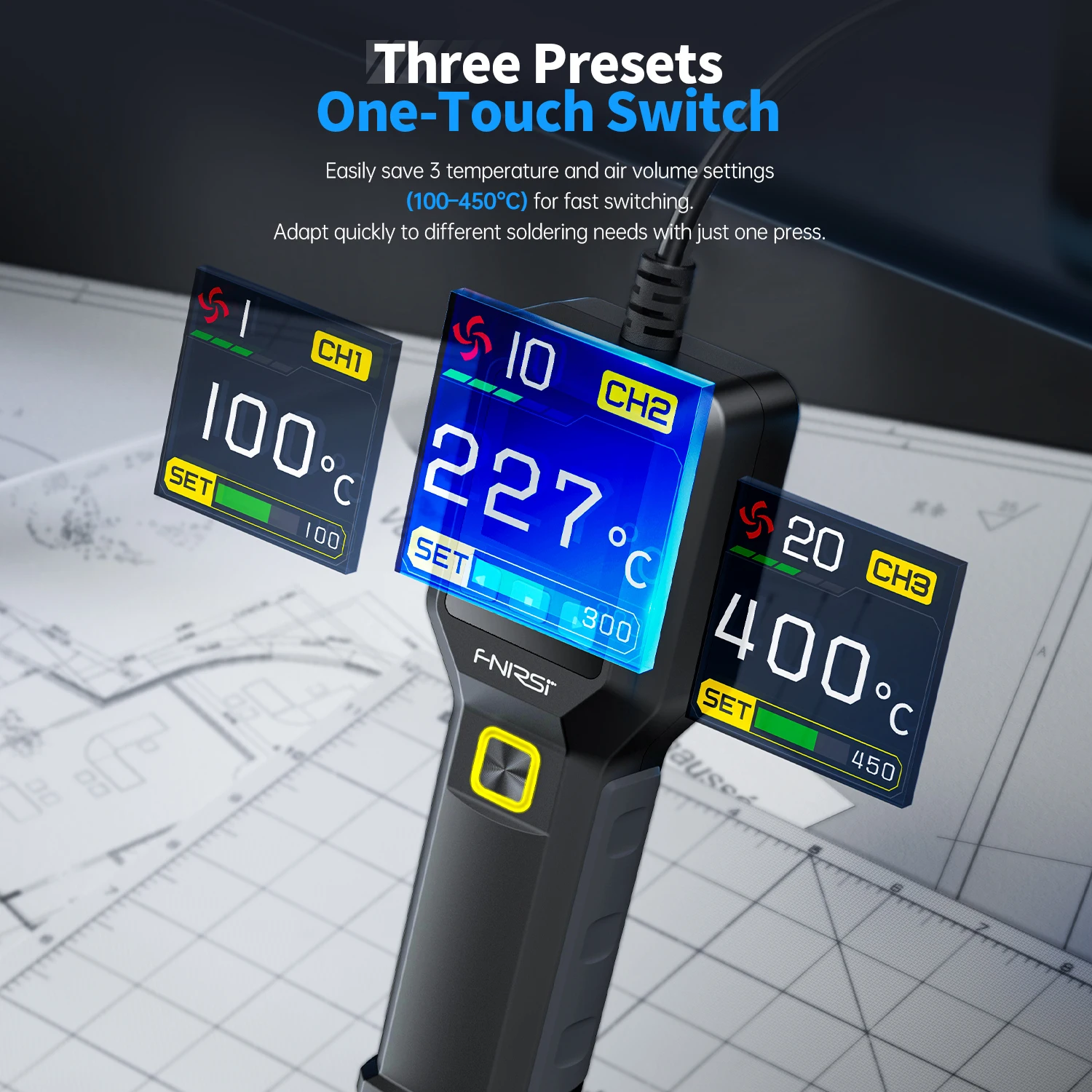

• ✓ Three Programmable Presets — Save your favourite temperature and airflow combinations and switch between them instantly with a single press
• ✓ One-Handed Operation — All controls on the handle with a clear 1.54-inch LCD screen, so you can adjust settings without putting the gun down
• ✓ Real-Time Safety Monitoring — Onboard sensors continuously check for abnormalities and automatically cut heating if anything irregular is detected
• ✓ Compact and Ergonomic — Lightweight, portable design with a comfortable grip suited to both extended professional use and DIY projects
• ✓ 850 Series Nozzle Compatible — Works with the widely available 850 series nozzle range for versatile rework applications

FNIRSI SAG-55 Specifications

Temperature Control

The SAG-55 covers a wide temperature range from 100°C to 450°C, giving you flexibility across a broad range of tasks. A PID control system actively maintains stable heat output, so the temperature you set is the temperature you get — no drift, no guesswork.

Rapid heating gets you up to working temperature quickly, while controlled, steady heat minimises thermal shock to sensitive components and extends the life of the heating element over time.

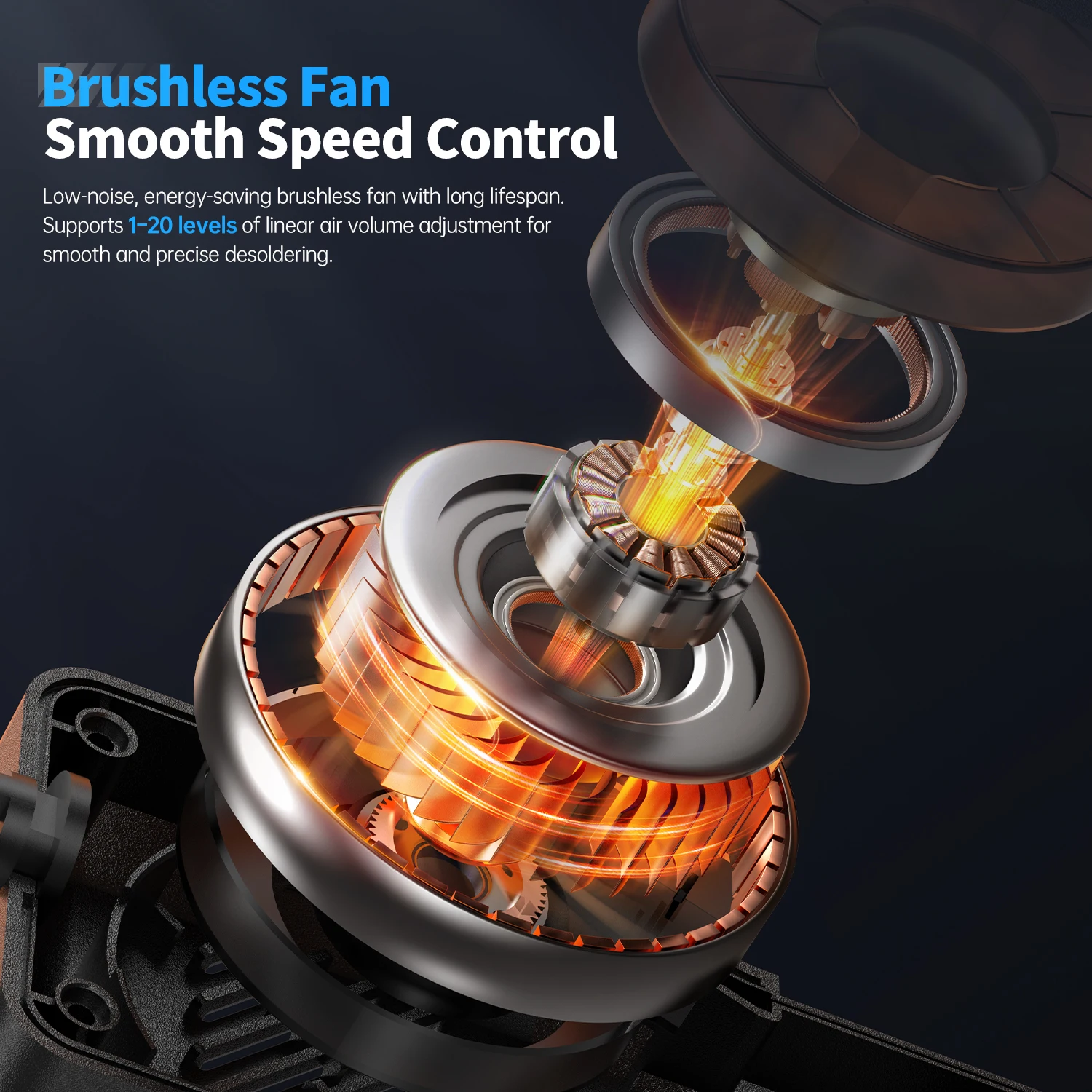

Adjustable Airflow

A brushless fan with 20 speed levels and a maximum airflow of 80L/min lets you match airflow precisely to the task at hand. Use lower speeds for fine SMD work where you need control, and higher speeds for larger surface areas or faster post-task cooling. The fan runs at under 65dB, keeping your workspace quiet.

Built-In Display and Controls

A clear 1.54-inch LCD screen shows your current temperature and airflow settings at a glance. All controls sit on the handle itself, so you can make adjustments with one hand without putting the gun down.

Three programmable presets let you save your most-used settings and switch between tasks instantly — no resetting from scratch each time. Screen brightness is adjustable for different lighting conditions, and you can choose between Celsius and Fahrenheit display.

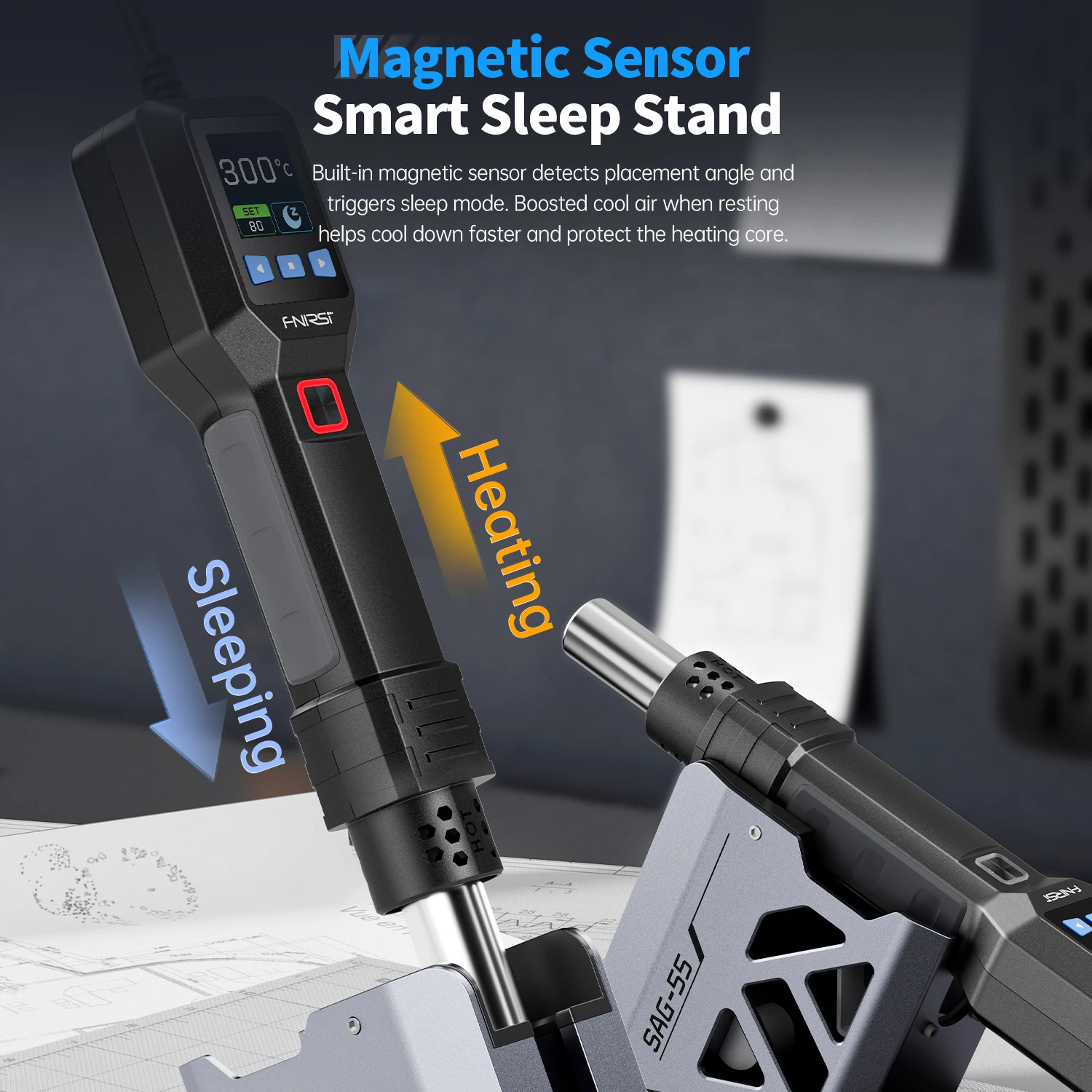

Magnetic Stand and Auto Standby

The SAG-55 handle contains a magnetic sensor that communicates with the stand. Lift the gun and heating activates automatically. Place it back in the stand and it enters standby mode on its own — no buttons to press while your hands are full.

During standby, a rapid cooling function increases airflow to bring the element temperature down faster, protecting the tool between uses and reducing energy consumption.

Safety

Real-time monitoring keeps watch throughout operation. If anything abnormal is detected, the system automatically shuts off heat output. The rapid cooling function during standby also acts as a secondary safety measure by reducing residual heat quickly after use.

Compact and Ergonomic

Despite its capability, the SAG-55 has a minimal bench footprint at 260 × 60 × 40mm and weighs approximately 1,391g including accessories. The ergonomic handle is designed for comfortable use over longer sessions.

SAG-55 vs SAG-55 Pro — What’s the Difference?

Both models share the same core hardware: 550W power, 100°C–450°C temperature range, PID control, and the full 1–20 speed airflow system. The difference comes down to the stand.

The Standard SAG-55 includes a basic metal stand that holds the gun securely between uses.

The SAG-55 Pro upgrades to a smart magnetic sleep stand that works with the gun’s built-in magnetic sensor to unlock two automatic features:

• Auto Standby — When you place the gun in the Pro stand, it detects the magnetic contact and immediately lowers temperature and enters standby mode. No manual input needed.
• Rapid Auto Cooling — On docking, the gun increases airflow to cool the element down faster, reducing wear and protecting the tip.

The Pro stand is purpose-built for this functionality. The basic stand that comes with the Standard Set does not trigger these automatic responses.

Choose the Standard Set if you want a capable rework station at a lower entry price and are happy to manage standby manually.

Choose the Pro Set if you want a smarter, safer workflow — where putting the gun down is all it takes to protect it and prepare it for your next task.

What’s In the Box?

Standard Set

• SAG-55 hot air gun
• Basic stand
• Power adapter and cable
• 6mm nozzle

Pro Set

• SAG-55 hot air gun
• Metal smart magnetic sleep stand
• Power adapter and cable
• 6mm nozzle

Power and Compatibility

Available in UK and EU plug versions. Maximum power output of 550W.

Who Is This For?

The SAG-55 is well suited to electronics hobbyists and repair technicians working with SMD and BGA components, makers using heat shrink on wiring projects, and anyone who needs reliable, controlled hot air for detailed rework — whether on a professional bench or at home.

Practical uses include: BGA chip removal and reflow, SMD desoldering without disturbing adjacent components, heat shrink application, warming adhesives for disassembly, and pre-heating boards to reduce soldering stress.
