YIHUA 995D+-I Hot Air Rework and Soldering Station
810W Total Power | 110W Soldering Iron | 700W Hot Air Gun | 3 Memory Presets | LCD Display
KEY FEATURES of 995D+
- 2-in-1 Hot Air Rework + Soldering Station (810W): Combines a 700W hot air gun and a 110W soldering iron in a single unit. Both tools operate independently with their own temperature controls, so you can reflow a component with hot air and touch up joints with the iron without switching stations.
- 110W Upgraded Soldering Iron: A major step up from the 75W iron on the older 995D+. The extra power means faster heat-up, better thermal recovery on ground planes and large joints, and confident handling of lead-free solder. Temperature range: 200–480°C (392–896°F) with PID control cycling every 20 milliseconds.
- 700W Hot Air Gun with Easy Plug-and-Pull Nozzles: The hot air gun covers 100–480°C with airflow up to 120 L/min at just 45 dB — remarkably quiet for this power level. The new nozzle system lets you swap between sizes without tools or waiting for cool-down. No more fiddling with screw-on fittings mid-job.
- 3 Memory Presets (CH1/CH2/CH3): Store three complete profiles — gun temperature, iron temperature, airflow, display mode, sleep time, and auto mode setting. Switch between tasks with a button press. One channel for lead-free SMD work, one for leaded through-hole, one for delicate connector rework — whatever suits your workflow.
- Smart Auto/Manual Hot Air Modes: In auto mode, the gun activates when you lift it from the holder and deactivates when you put it back. Manual mode gives full operator control. The cool air function blows unheated air for rapid post-rework cooling — handy for setting components before flux residue spreads.

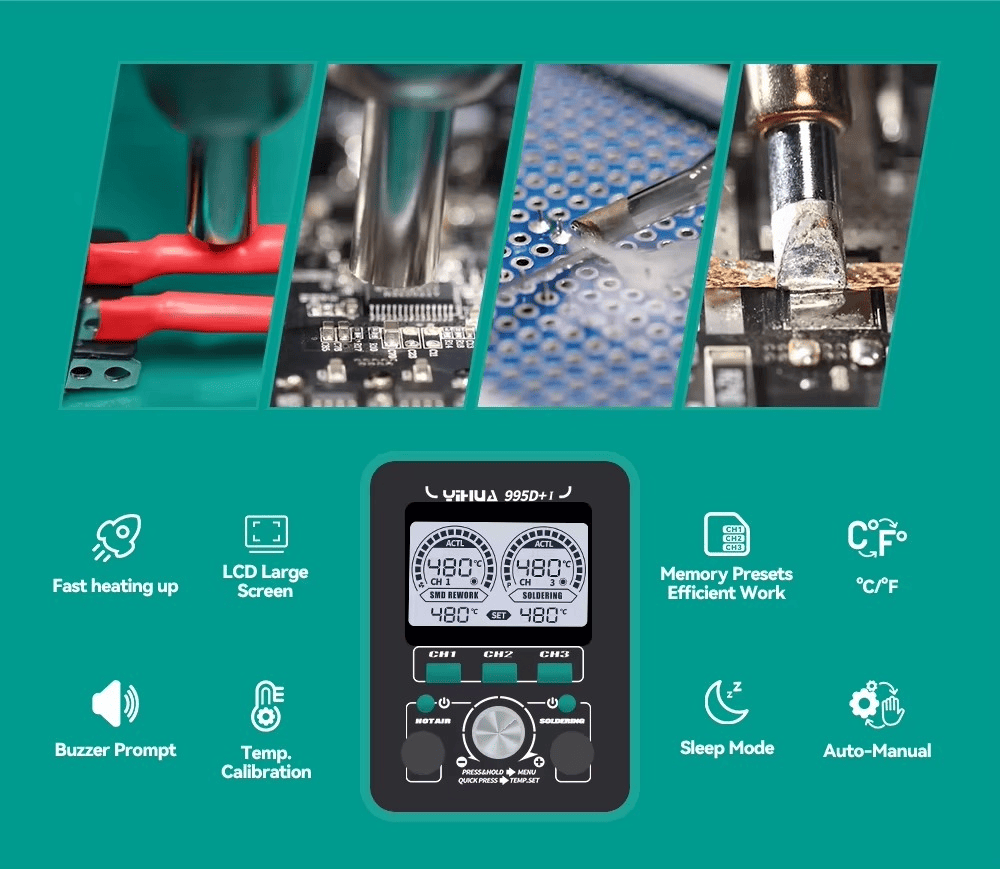

- Large LCD Display with Airflow Indicator: The dynamic LCD shows both tool temperatures, airflow level, active memory channel, and operating status. The visual airflow indicator is a nice touch — you can see at a glance how much air you’re pushing without guessing from the dial position.
- Full Protection Suite: Self-test diagnostics on power-up, intelligent fault display, and automatic protection for overheating, short circuit, open circuit, and overload conditions. Adjustable soldering iron sleep mode (0–99 minutes) reduces tip wear during idle periods. ESD-safe design throughout.
PRODUCT DESCRIPTION
Why the 995D+-I
If you do both through-hole soldering and SMD rework, you’ve probably got two separate stations on your bench — a soldering iron station and a hot air rework station. That’s two power cords, two footprints, and two sets of controls to manage. The 995D+-I puts both tools in one box with independent controls, shared memory presets, and a single LCD showing everything at once.
The “-I” suffix matters. This isn’t just the 995D+ with a new sticker — the soldering iron jumped from 75W to 110W (a genuine performance upgrade for lead-free work and ground planes), the hot air nozzles switched from screw-on to plug-and-pull (a workflow improvement you’ll appreciate the first time you need to change nozzle sizes mid-session), and the display has been refreshed with a dynamic layout that includes a visual airflow indicator.
Everything else carries over from the well-established 995D+ platform: three memory channels, cool/hot air conversion, auto and manual hot air modes, adjustable sleep timer, digital temperature calibration, self-test diagnostics, and ESD-safe design. The 995D+ has been one of YIHUA’s most popular stations for years — the “-I” takes what worked and fixes what needed fixing.
What You’re Actually Getting

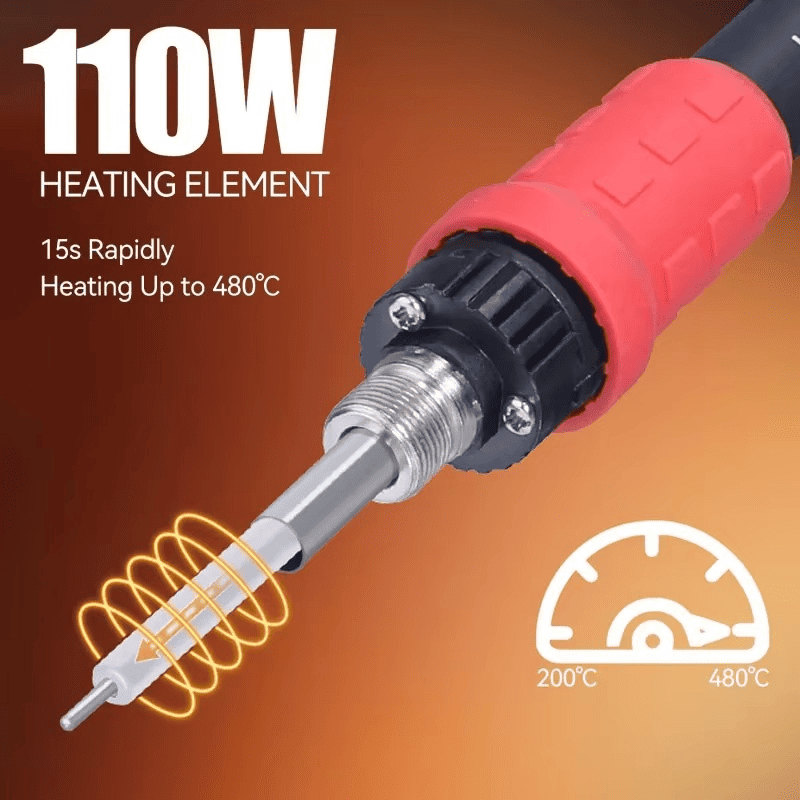

110W Soldering Iron with PID Control. The upgraded iron uses PID temperature compensation cycling every 20 milliseconds — the same correction speed found in the 948D-III. The 110W output is nearly 50% more than the previous generation’s 75W, and the difference is immediately noticeable. Ground planes that used to stall a 75W iron now heat properly. Lead-free solder flows more consistently. Thermal recovery after touching cold joints is dramatically faster. The 110W iron is particularly capable on multi-layer PCBs with thermal ground planes — these boards soak up heat aggressively, and the extra wattage means the iron recovers quickly rather than stalling on the joint. This was a common frustration with the older 75W models. The iron accepts 902-series tips and ships with a pre-installed 902-S3 tip.

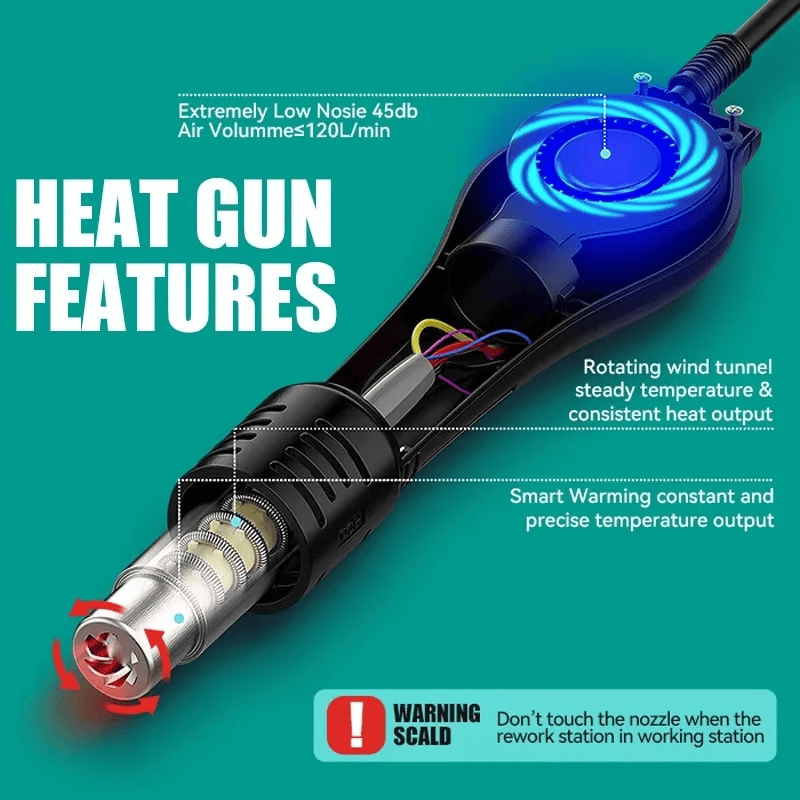

700W Hot Air Gun with Plug-and-Pull Nozzles. The hot air side delivers up to 120 litres per minute across a 100–480°C range, all at 45 dB or less. That noise figure is worth highlighting — many competing stations at this power level are considerably louder. The new nozzle system is a straightforward upgrade: push the nozzle on, pull it off. No wrench, no threading, no burning your fingers trying to unscrew a hot nozzle. Multiple nozzle sizes ship in the box (5–8 depending on the package).
3 Memory Presets. Each channel stores a complete profile: hot air temperature, airflow level, soldering iron temperature, display mode, iron sleep time, and auto mode on/off. This is genuinely useful if you work across different types of jobs. Set up CH1 for your standard lead-free SMD rework profile, CH2 for leaded through-hole work at lower temperatures, CH3 for delicate flex cable and connector work with reduced airflow. One button to switch.

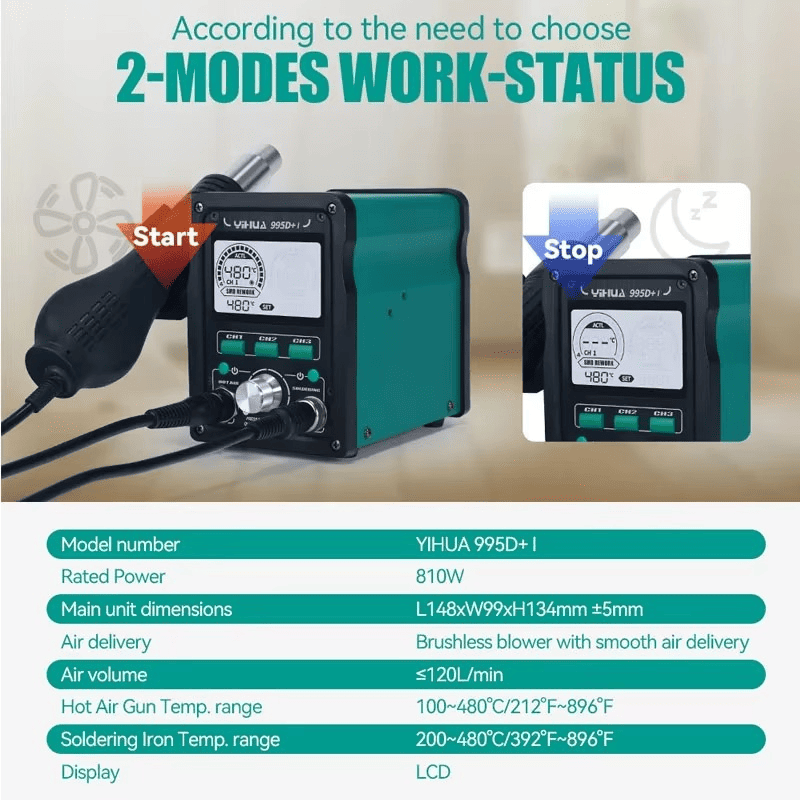

Auto and Manual Hot Air Modes. Auto mode is the daily driver — lift the gun from its holder and it heats to your set temperature; return it and it cools down and shuts off. Manual mode keeps the gun running regardless of holder position, which is useful when you need to set the gun down briefly during a multi-step rework without triggering cool-down. The cool air conversion function blows ambient-temperature air through the gun, which is handy for speeding up solder solidification after component placement.
Adjustable Sleep Mode (0–99 Minutes). The soldering iron sleep timer is user-configurable. When the iron sits in its holder beyond the set time, it drops to a low temperature to reduce tip oxidation and save energy. You can set it anywhere from instant sleep to 99 minutes, or disable it entirely for long sessions where you’re picking the iron up frequently.
Self-Test Diagnostics and Protection. On power-up, the station runs a self-test and displays any faults. During operation, it monitors for overheating, short circuits, open circuits, and overload conditions — displaying an intelligent fault code and shutting down the affected tool if needed. It’s the kind of feature you hope you never need, but you’re glad it’s there.

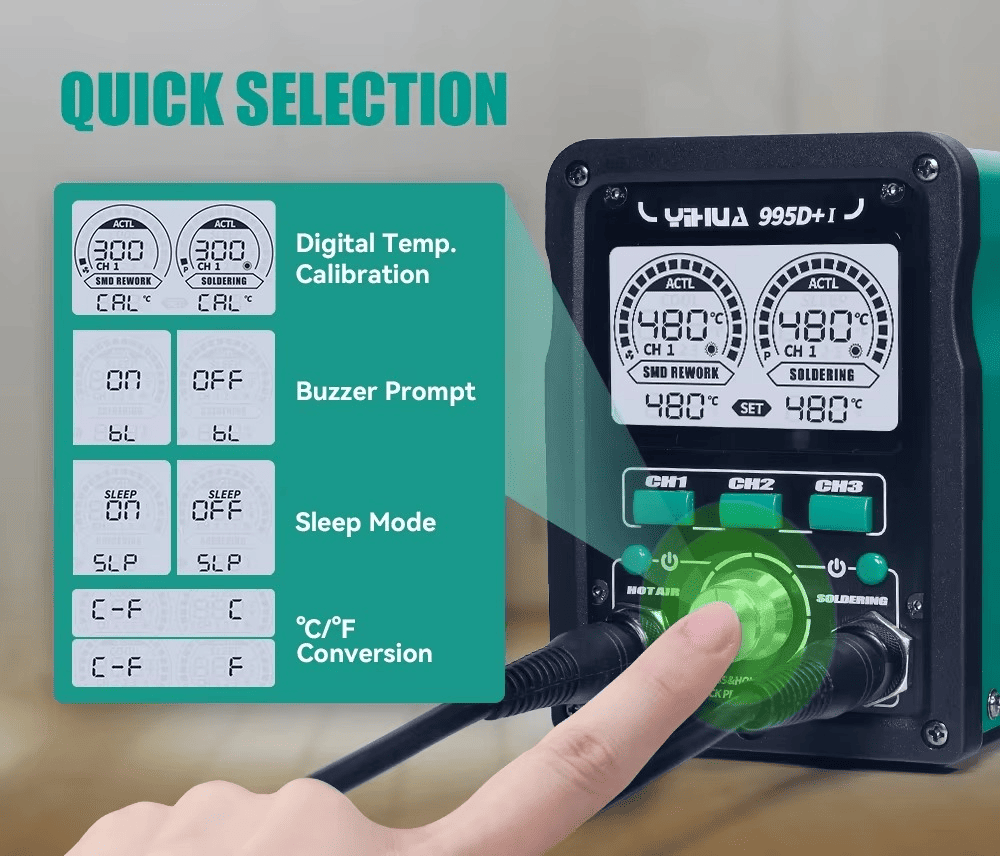

Digital Temperature Calibration. Both the iron and hot air gun support digital calibration with a ±50°C (±90°F) offset range. If the displayed temperature drifts from actual tip temperature — due to tip wear, environment, or component ageing — you can correct it against an external thermocouple without opening the station.
TECHNICAL SPECIFICATIONS
| YIHUA 995D+-I — Technical Specifications | |
|---|---|
| Model | YIHUA 995D+-I |
| Station Type | 2-in-1: Hot air rework gun + soldering iron |
| Total Rated Power | 810W |
| Soldering Iron Power | 110W (upgraded from 75W on 995D+) |
| Hot Air Gun Power | ~700W |
| Input Voltage | AC 220–240V / 50Hz (UK plug) |
| Iron Temp Range | 200–480°C (392–896°F) |
| Hot Air Temp Range | 100–480°C (212–896°F) |
| Max Airflow | 120 L/min |
| Noise Level | ≤ 45 dB |
| Temperature Control | PID with Zilog dual-core microcomputer (20ms cycle) |
| Display | Large LCD with dynamic airflow indicator |
| Memory Presets | 3 channels (CH1/CH2/CH3) |
| Hot Air Modes | Auto (holder-activated) + Manual |
| Cool Air Function | Yes — ambient air for rapid post-rework cooling |
| Iron Sleep Mode | Adjustable 0–99 minutes |
| Nozzle System | Easy plug-and-pull (upgraded from screw-on) |
| Iron Tips | 902-series (6.6mm barrel, 40mm length) — ships with 902-S3 |
| Temp Calibration | Digital ±50°C / ±90°F |
| Self-Test | Yes — diagnostics on power-up with fault display |
| Protection | Overheat, short circuit, open circuit, overload |
| ESD Safe | Yes |
| Lead-Free Compatible | Yes |
| °C/°F Switching | Yes |
WHAT’S IN THE BOX

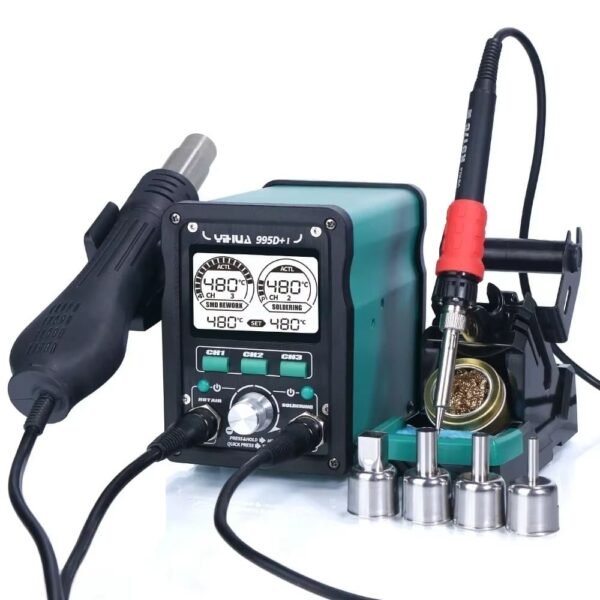

✓ YIHUA 995D+-I soldering station with LCD display
✓ Hot air gun with plug-and-pull nozzle system
✓ Soldering iron handle with pre-installed 902-S3 tip
✓ Soldering iron holder
✓ 5–8 hot air nozzles (varies by package)
✓ UK power cord and instruction manual
Recommended add-ons: The included 902-S3 soldering tip is a good starting point, but you’ll want a range of profiles for different work. The YIHUA 902-series tip set covers conical, needle, knife, chisel, and bevel shapes. You’ll also want solder wire, flux, and a decent pair of ESD-safe tweezers if you don’t already have them.
HOW IT COMPARES
The 995D+-I’s main competitive advantage is straightforward: a 110W soldering iron paired with a full-featured hot air station in a single unit. At this price point, that combination is hard to match.
Against the older YIHUA 995D+ (which is still widely sold), the “-I” brings the 110W iron upgrade, plug-and-pull nozzles, and the refreshed display. If you’re buying new, there’s no reason to choose the older model — the upgrades are meaningful and the price difference is minimal.
Against the YIHUA 862BD+, which is another popular 2-in-1 hot air + soldering station, the 995D+-I offers higher total power (810W vs. the 862BD+’s lower output), memory presets, and the upgraded nozzle system. The 862BD+ is typically cheaper but aimed at lighter-duty work.
Against the YIHUA 948D-III (available from Kunkune), it’s a different tool for a different job. The 948D-III pairs a soldering iron with a vacuum desoldering gun — there’s no hot air capability at all. If your primary need is through-hole desoldering, the 948D-III is the right choice. If you need hot air for SMD rework, the 995D+-I is the one.
Against external competitors like the Quick 861DW or Hakko FR-810, the main trade-offs are build refinement and fan type. The 995D+-I uses a brushless fan in the handle (like most stations in this price range), while higher-end units use a BLDC motor in the base — which delivers more consistent, controllable airflow and a lighter handle. If you’re comparing purely on features-per-pound, the YIHUA holds its own. If you’re investing in a station for daily professional use and you can justify the higher spend, the Quick and Hakko offer superior build quality and airflow precision. For hobbyists, repair techs, and small workshops, the 995D+-I delivers the capability without the price tag.
BEST USE CASES for YIHUA 995D+ EVO
SMD soldering and desoldering (SOIC, CHIP, QFP, PLCC, BGA)
reflowing, removing, and replacing surface-mount components of all package types using hot air with soldering iron touch-up. This is the station’s core purpose. Suitability: excellent.
Mobile phone and tablet repair
flex cables, connectors, small IC replacements, shield removal, and board-level diagnostics. The hot air + iron combo covers most phone repair scenarios in a single unit. Suitability: excellent.
Laptop repair and board-level rework
replacing USB-C ports, audio jacks, power delivery ICs, and other SMD components on laptop motherboards. The 110W iron handles the larger thermal mass of laptop boards better than the previous 75W model. Suitability: very good.
Lead-free soldering on multi-layer PCBs
the 110W iron is particularly capable here. Multi-layer boards with thermal ground planes soak up heat aggressively — the extra wattage means the iron recovers quickly rather than stalling on the joint. This was a common frustration with the older 75W models. Suitability: very good.
PCB prototyping and hobby electronics
soldering components onto custom boards, reworking mistakes, assembling through-hole and SMD projects. The memory presets are handy for switching between lead-free and leaded profiles. Suitability: excellent.
Console and gaming hardware repair
HDMI port replacements, capacitor swaps, and IC rework on game consoles. The hot air gun handles most of these jobs, and the iron covers touch-up. Suitability: very good.
Heat shrink tubing and conformal coating removal
the hot air gun’s variable temperature and airflow make it useful beyond soldering. Heat shrink, adhesive softening, conformal coating removal, and general heat application tasks all work well. Suitability: very good.
Product development and scientific research
electronic product assembly, prototyping, and testing in R&D environments where a versatile bench station covers multiple tasks without dedicated equipment for each. Suitability: very good.
Heavy BGA rework on large boards
while the 700W hot air gun is capable, truly large BGA packages on dense server boards or GPU modules may push the thermal limits. For dedicated BGA work at this level, consider a dedicated infrared preheater alongside the hot air gun. Suitability: good (may need preheating assistance).
High-volume production rework
the 995D+-I is a bench repair station, not a production line tool. For continuous daily professional use at high volume, invest in dedicated JBC, Quick, or Metcal systems. Suitability: not recommended.
FREQUENTLY ASKED QUESTIONS
What’s the difference between the YIHUA 995D+ and 995D+-I?
Three key upgrades. First, the soldering iron jumped from 75W to 110W — a significant power increase that improves thermal recovery and lead-free soldering performance, particularly on multi-layer PCBs with thermal ground planes. Second, the hot air nozzles switched from a screw-on system to an easy plug-and-pull design, making nozzle changes faster and tool-free. Third, the LCD display has been refreshed with a dynamic layout that includes a visual airflow indicator. Everything else — memory presets, auto/manual modes, sleep timer, calibration, self-test — carries over from the proven 995D+ platform.
What tips does the YIHUA 995D+-I soldering iron use?
The iron uses YIHUA’s 902-series tips (6.6mm barrel, 40mm length). These are the same proprietary tips used across several YIHUA stations including the 948D-III. They are not compatible with Hakko T18 or JBC C245 cartridges. The station ships with a 902-S3 tip pre-installed, and additional tip profiles are available from Kunkune.
Where can I buy the YIHUA 995D+-I in the UK?
In the UK, the YIHUA 995D+-I is available from Kunkune — shipped fast from Oxfordshire via Royal Mail, delivered in 1–2 days. UK-spec power cord included, 12-month warranty, and 60-day easy returns. No customs charges, no drama.
THE BOTTOM LINE
The YIHUA 995D+-I is the station you buy when you need both hot air and a soldering iron on the same bench and you don’t want to buy two separate units. The 110W iron upgrade makes it genuinely capable on lead-free work, multi-layer PCBs, and thermal ground planes — areas where the older 75W model sometimes fell short. The plug-and-pull nozzle system removes a real source of frustration from the hot air side, and the three memory presets mean you can switch between different types of work without reconfiguring everything from scratch.
At 810W total power with PID control on both tools, it offers a feature set that’s hard to match at this price: 3 memory channels, auto/manual hot air modes, cool air conversion, adjustable sleep timer, digital calibration, self-test diagnostics, and ESD-safe design. The main trade-offs versus higher-end stations are the brushless fan (vs. BLDC motor in the base on pricier units) and overall build refinement — but for hobbyists, repair techs, and small workshops, those trade-offs are easy to live with.
One station. Two tools. One power cord. One spot on the bench.
