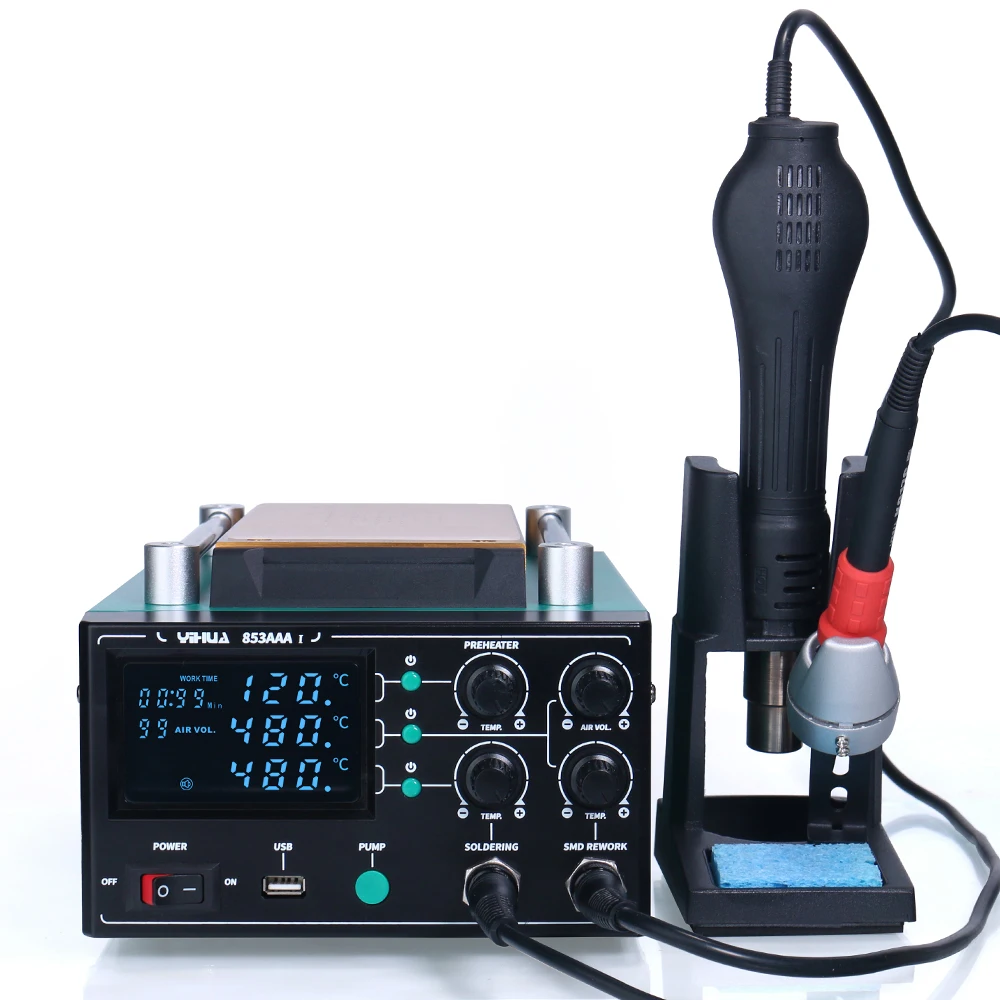

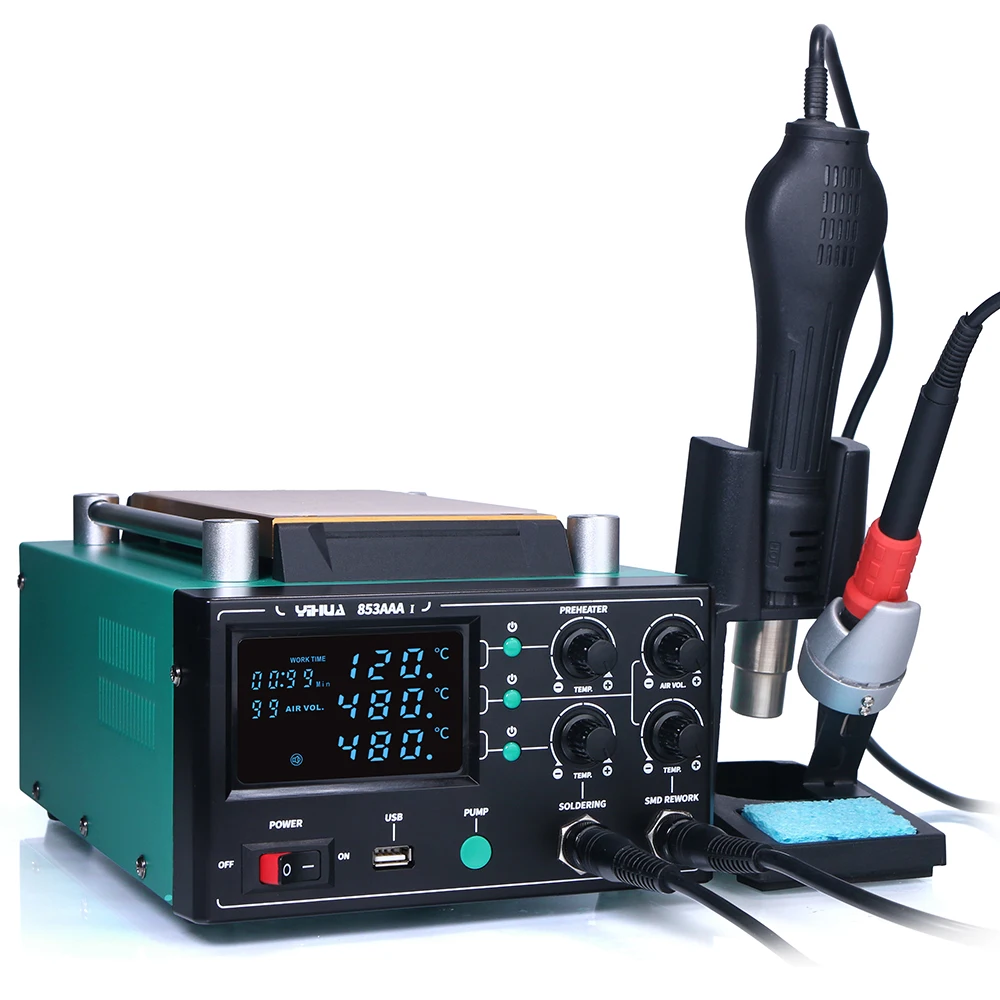

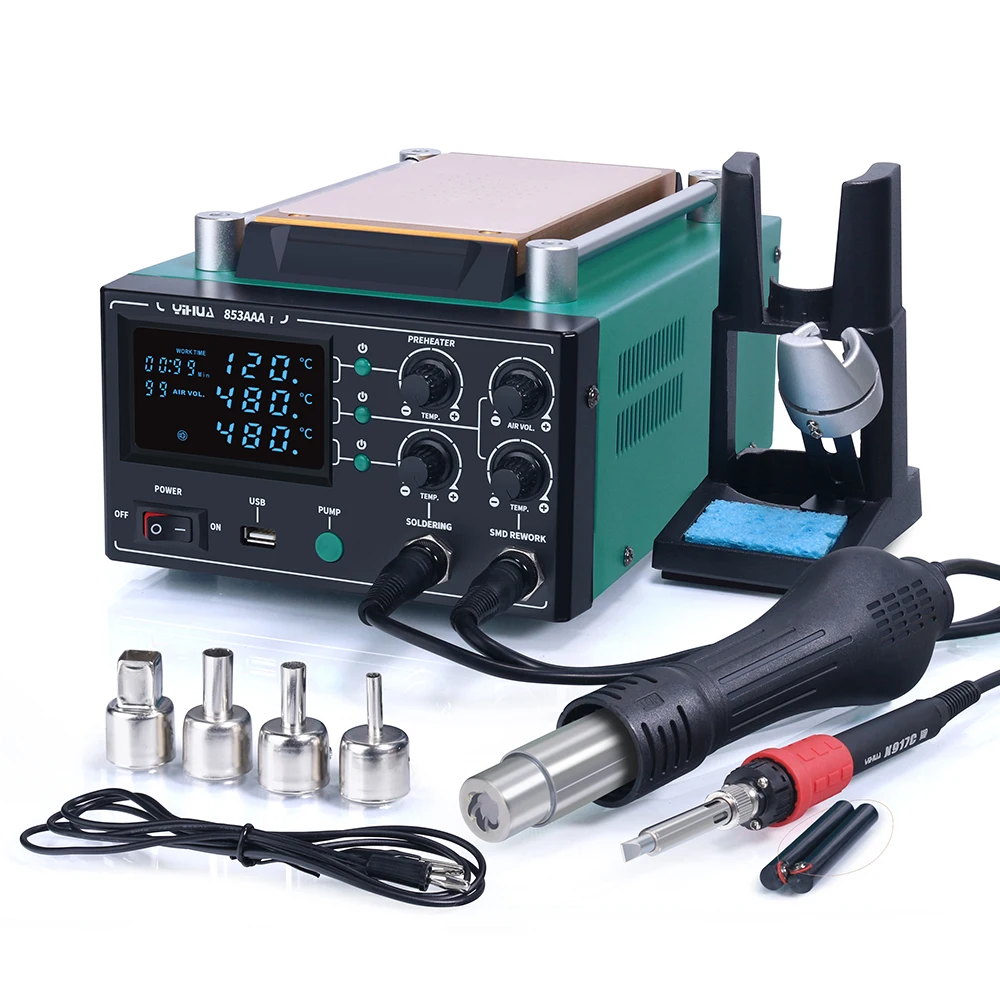

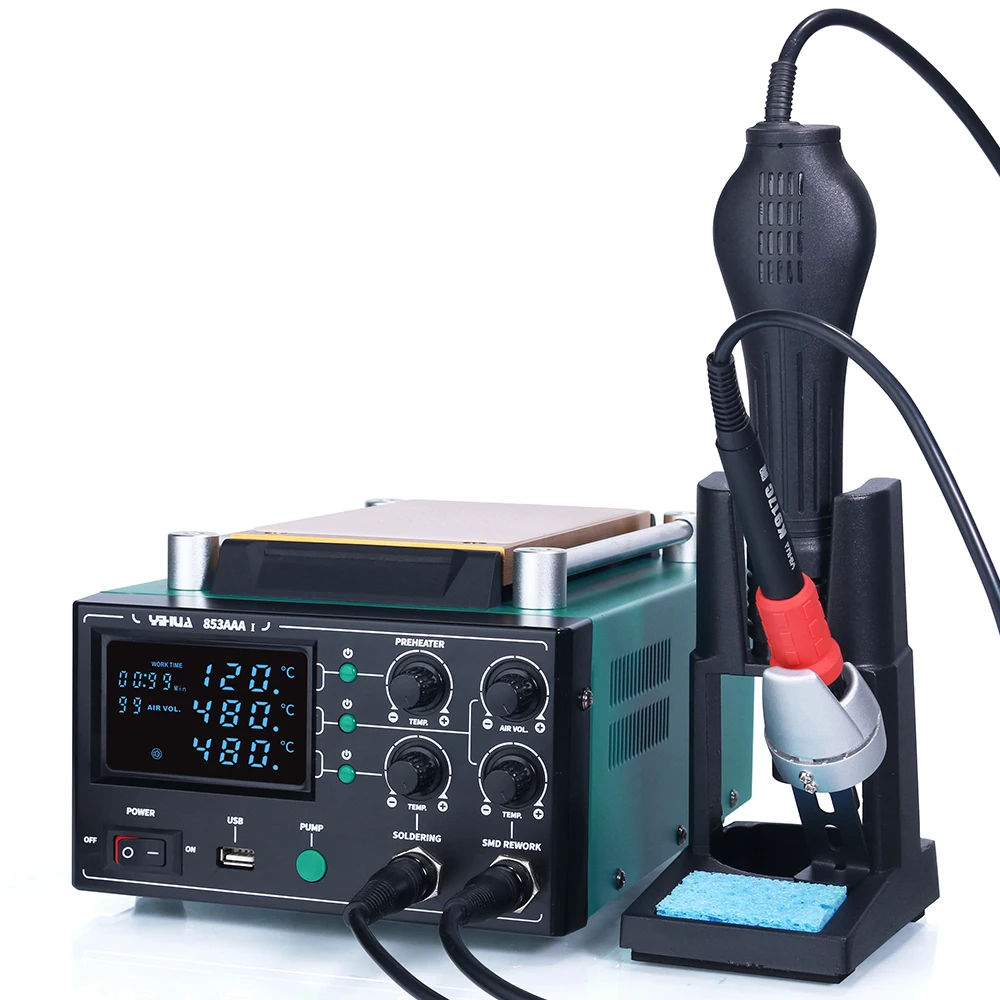

YIHUA 853AAA-I Digital 3-in-1 Hot Air Rework Station 1180W SMD

The YIHUA 853AAA-I Hot Air Rework Station is a digital 3-in-1 rework station designed for electronics repair tasks. This unit combines soldering, desoldering, and preheating functionality for mobile phone repair, SMD component soldering, BGA rework, and electronics applications.

3-in-1 Functionality:

• Soldering Station: High-power soldering iron with temperature range from 200°C to 480°C (392°F to 896°F) for precise soldering of surface-mount components. Features rapid heating and imported heater for stable results.

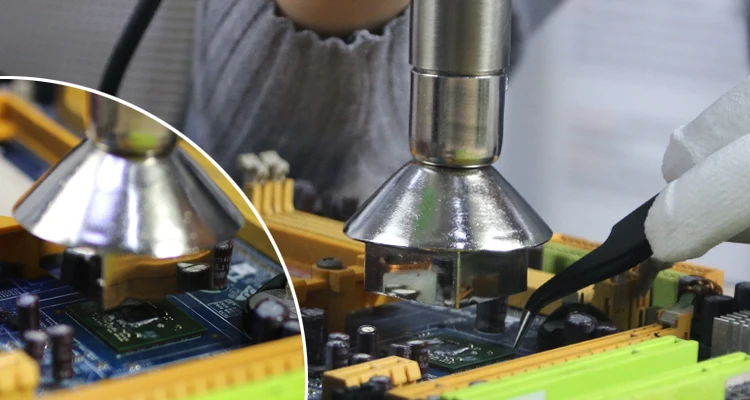

• Hot Air Rework Station: Hot air gun with temperature range of 100°C to 480°C (212°F to 896°F), air volume up to 120L/min, and brushless blower for desoldering BGA components and heat shrink applications. Enhanced fan design ensures smooth airflow and extended service life.
• Preheat Platform: Dedicated preheating station with temperature range of 50°C to 120°C (122°F to 248°F) for evenly heating circuit boards or separating LCD screens. Platform surface area of 200x110mm enhances efficiency during soldering and desoldering.

Technical Features:

• PID Programmable Temperature Control: Real-time monitoring and automatic temperature correction via microcomputer processor, ensuring precise and stable temperatures for all operations.
• Enhanced Hot Air Gun: Ceramic heater with upgraded fan and heating element design, providing uniform and rapid heating. Larger airflow increases efficiency and service life.
• Improved Soldering Iron: Faster heating, better temperature stability, and antistatic design to protect sensitive SMD components from damage.
• Digital Display: Nixie LED display shows precise temperature and airflow settings for easy monitoring and adjustment.

Safety Features:

• Automatic Shut-Off and Sleep Mode: Unit enters low-power sleep mode after 10 minutes of inactivity and automatically shuts down after 30 minutes to conserve energy.
• Temperature Locking: Prevents accidental temperature changes for safety and consistent performance.
• Self-Test Function: Automatically detects issues like overheating, short circuits, or overloads with alert and malfunction display.
• Antistatic Design: Protects sensitive components from static damage.
• Handle Protection: Air gun and soldering iron require placement on holders to power on, preventing damage.
• Thermal Resistant Materials: Soldering iron wire uses silicon material, withstanding contact with temperatures up to 300°C for 30 seconds.

Technical Specifications:

• Voltage: 220V–240V, 50Hz
• Rated Power: 1180W
• Dimensions: L275 x W195 x H130mm ±5mm
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Weight: 3.82 kg
• Temperature Display: Nixie LED
• Tip-to-Ground Resistance: <2 ohms (soldering station)
• Preheat Platform Surface Area: 200x110mm ±5mm

Additional Features:

• Dust Cover for Preheat Platform: Keeps heating panel free from dust and debris.
• Individual Controls: Each tool has independent controls for simultaneous or independent operation.
• Celsius/Fahrenheit Display: Switch between temperature displays to match user preferences.
• Magnetic Induction Technology: Preheat platform uses 360-degree rotary stoppers to secure circuit boards or components.

Applications:

• Electronics Repair: Soldering and desoldering SMD and BGA components, mobile phone repair, and PCB rework.
• Prototyping and Hobby Projects: Advanced electronics projects including complex SMD component soldering.
• Industrial Use: Electronics production, communication systems, and mobile phone repair for preheating, cooling, and drying tasks.
