C210 Cartridges: The Small End of the Cartridge System
40W | 90-450°C | Around 2 second heat-up | Three profiles | Fits any T210 handle
C210 is the fine end of the cartridge world. The heating element and the temperature sensor sit inside the tip itself, so it comes up to temperature in about two seconds and recovers instantly, but in a much slimmer body than a C245.
That slimness is the entire point. Under a microscope, on a dense board, working between tall components, a C245 tip is simply too big to get in. This is what you reach for then.
Which C210 Tip Do You Need?

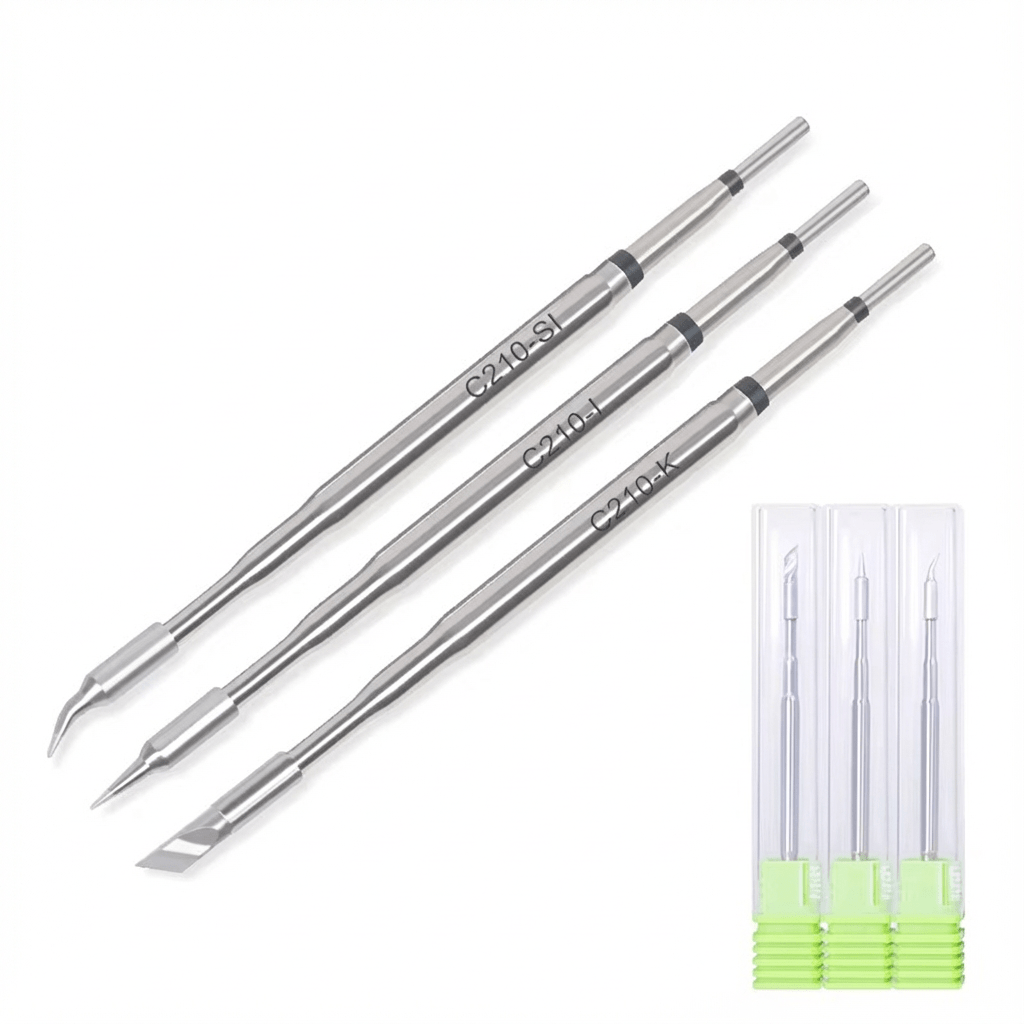

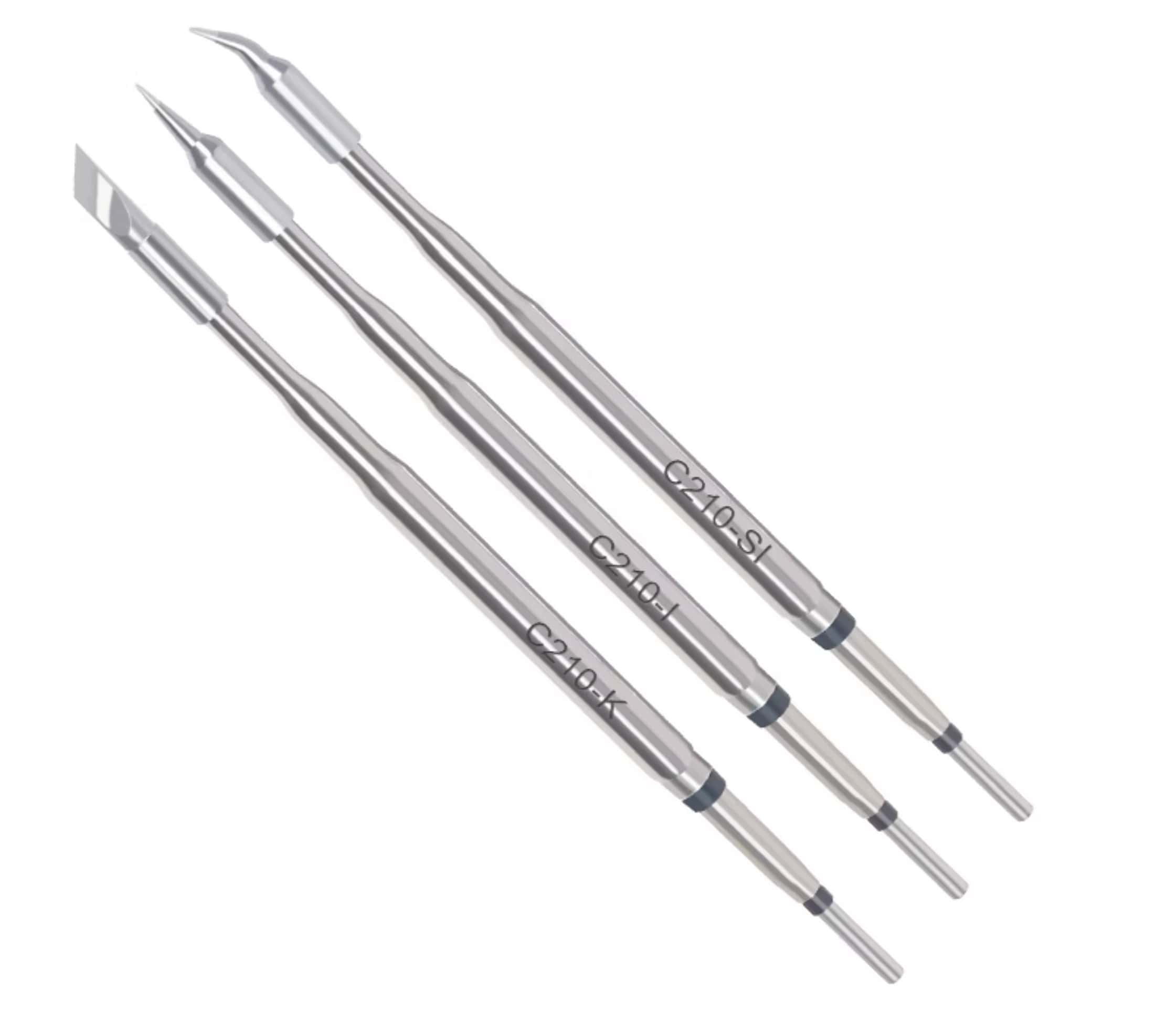

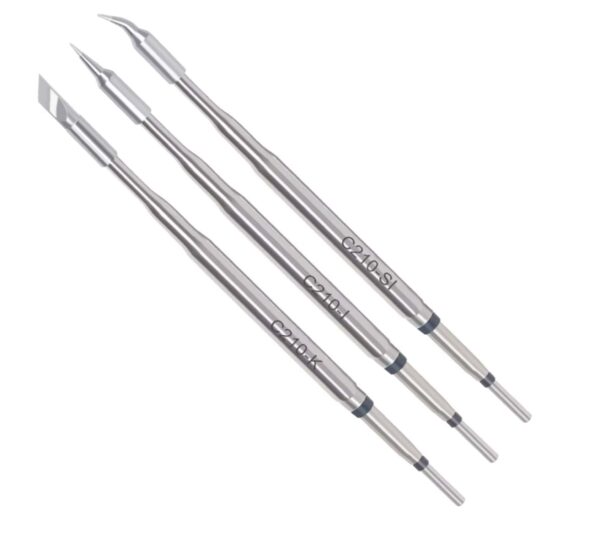

| Profile | Shape | Best for |
|---|---|---|

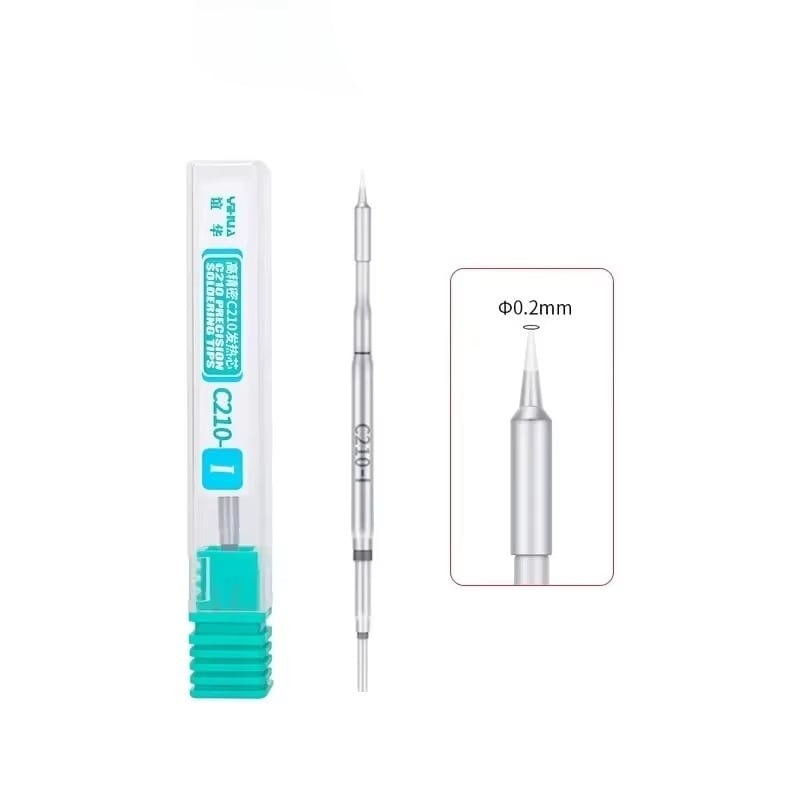

| C210-I | Conical, fine point | 0402 and smaller, individual IC pins, the finest work the format does |

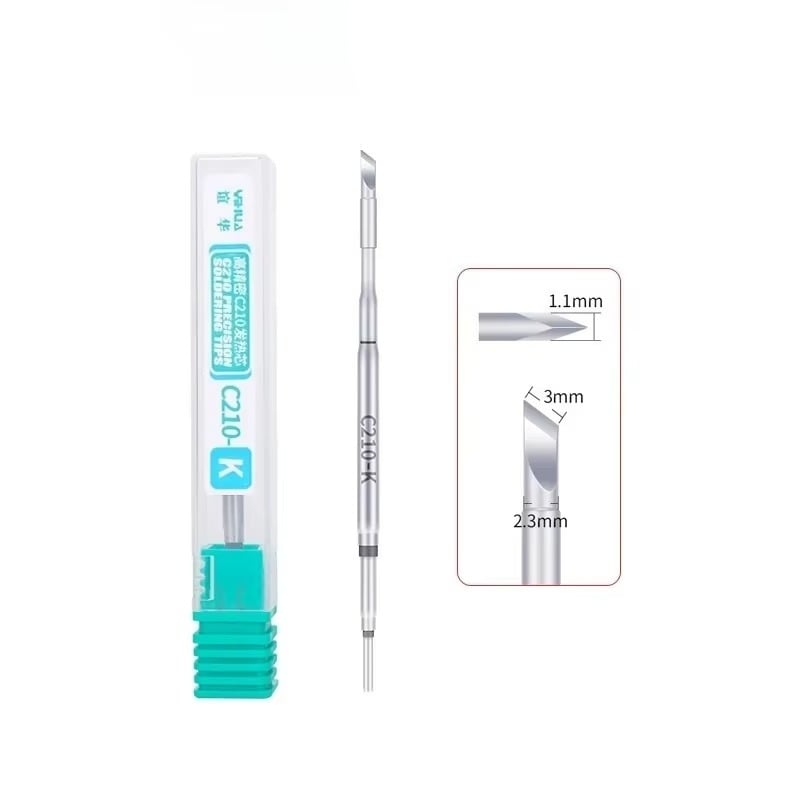

| C210-K most useful | Knife | Drag soldering fine-pitch ICs, clearing bridges, the best all-rounder of the three |

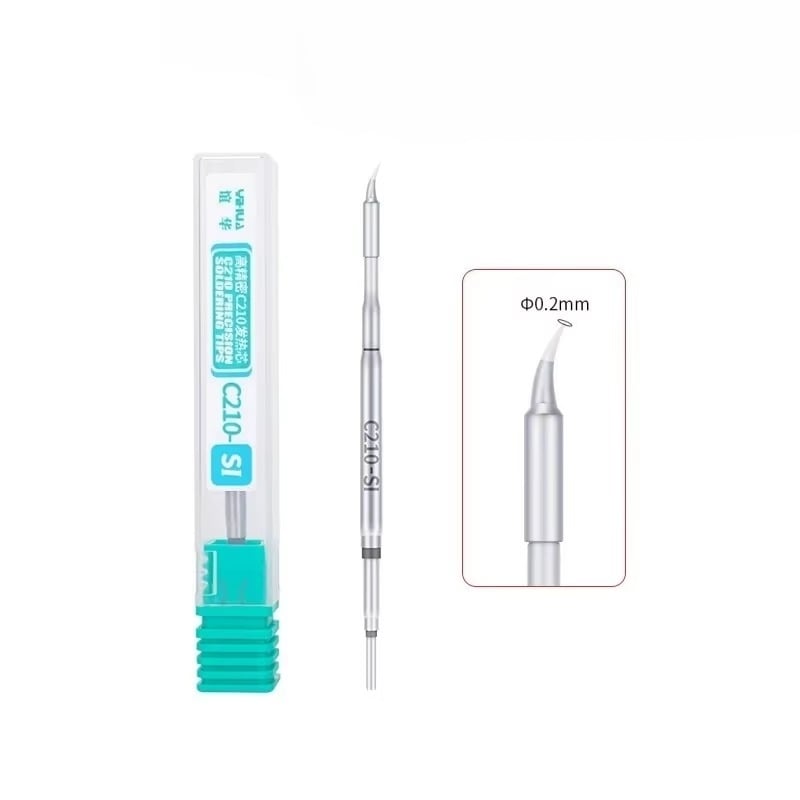

| C210-SI | Bent conical | Hidden leads and awkward angles where a straight tip cannot reach |
If you are buying one, take the K. A knife edge drags across a row of pins far better than a point, and it still handles single joints. The I is for when you genuinely need a point, and the SI is for when the board is in the way.
Is This the Same as JBC?
These are C210-compatible cartridges, not JBC-branded parts, and the distinction matters so here it is plainly. C210 is a cartridge format: a specific physical size and a specific electrical arrangement, with the heating element and the thermocouple built into the tip. Any handle or station designed for T210 cartridges takes them.
What you are buying is the same design principle at a fraction of the price. What you are not buying is JBC build quality or JBC support. Plenty of people run compatible cartridges for everyday work and keep a genuine one for the jobs that matter, which is a perfectly sensible way to do it.
C210 or C245?
| C210 | C245 | |
|---|---|---|
| Power | 40W | 140W peak |
| Body | Slim, low thermal mass | Larger, holds more heat |
| Best for | Fine-pitch SMD, microscope work, dense boards | Through-hole, connectors, ground planes, wire |
| Buy first? | Add second | Start here |
Most people start with C245 for general work and add C210 when they hit something a C245 tip physically cannot reach. The YIHUA 982 takes both, which is the point of a dual-handle station. There is a fuller breakdown in the C210 vs C245 vs 900M guide.
Making Them Last
- Brass wool, not a wet sponge. Wipe at 250 to 300°C. A wet sponge thermal-shocks a cartridge every time.
- Re-tin straight after cleaning. Fresh solder is what protects the plating on a bare tip.
- Drop the temperature when you pause. Sitting at full heat is the fastest way to wear a cartridge out.
- No abrasives, no chemical cleaners. Both strip the plating, and once it is gone the tip is finished.
Specifications
| Specification | Details |
|---|---|
| Cartridge format | C210, fits T210 handles |
| Power | 40W |
| Temperature range | 90°C to 450°C |
| Heat-up time | Approximately 2 seconds |
| Heating element | Integrated in the cartridge with built-in temperature sensor |
| Profiles stocked | C210-I conical, C210-K knife, C210-SI bent conical |
| Sold | Individually |
| Hot-swappable | Yes, with a T210 handle |
Frequently Asked Questions
Will these fit a JBC station?
They are C210-format cartridges, so any handle or station built for T210 takes them. They are compatible cartridges rather than JBC-branded parts: the same physical format and electrical arrangement, at a fraction of the price. You are not buying JBC build quality or support, and we would rather say that than imply otherwise.
Which C210 tip should I buy first?
The C210-K knife. A knife edge drags across a row of fine-pitch pins far better than a point does, and it still handles individual joints perfectly well. Add the I when you need a genuine fine point and the SI when a component is in the way of a straight approach.
C210 or C245, what is the difference?
Power and size. C210 runs at 40W in a slim body, which is what you want under a microscope or on a dense board. C245 runs at 140W peak in a larger body, which is what you want for through-hole, connectors and ground planes. Most people buy C245 first and add C210 when they meet work the bigger tip cannot physically reach.
What stations take C210?
Anything with a T210 handle. From our range the YIHUA 982 is the dual-handle station that takes C210 and C245 together, so you can move between fine and heavy work without changing equipment.
How do I stop them wearing out?
Clean on brass wool rather than a wet sponge, re-tin immediately after cleaning, and drop the temperature when you stop for a few minutes. Never use an abrasive or a chemical tip cleaner, because they take the plating off and the cartridge is finished after that.
